Photos of your work! - Professional Wall and Floor Tiling Pictures (2019 Public Thread)
Tilers Forums Official Sponsors
O
Old Mod
Thats very effective Antonio, clean and simple.
looks excellent. 😊👍
[automerge]1573305083[/automerge]
looks excellent. 😊👍
[automerge]1573305083[/automerge]
Looks well tho Dave, lovely floor.
O
Old Mod

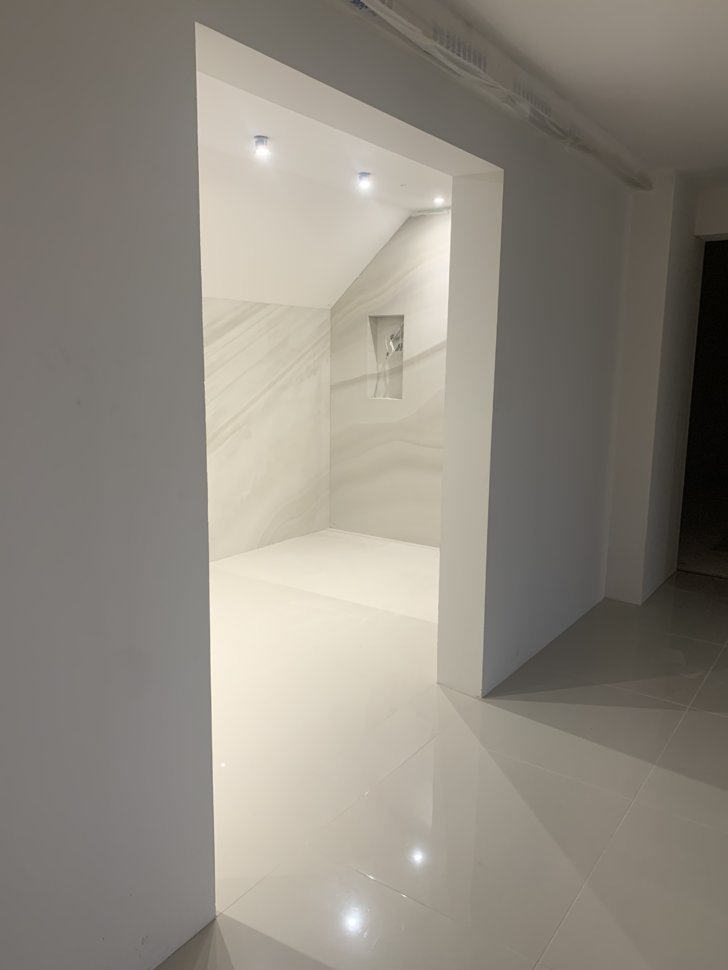

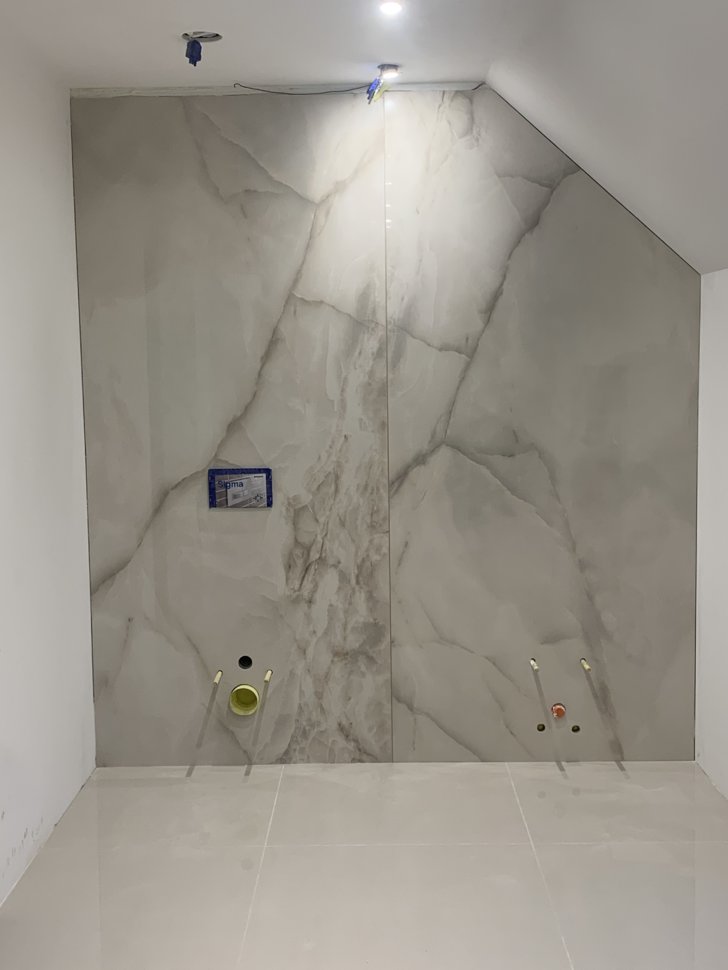

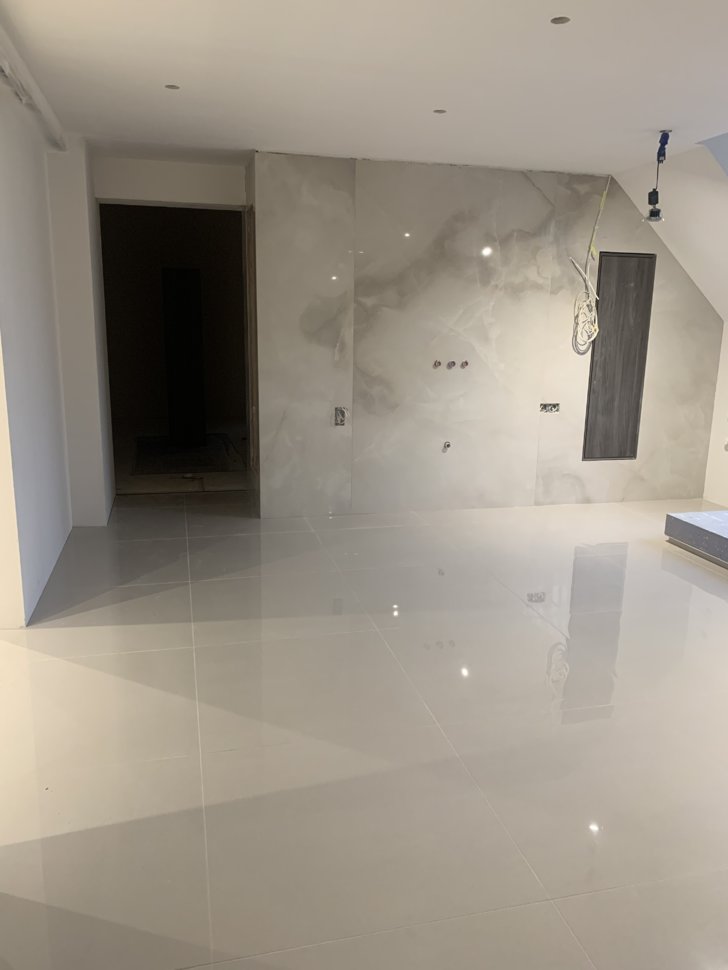

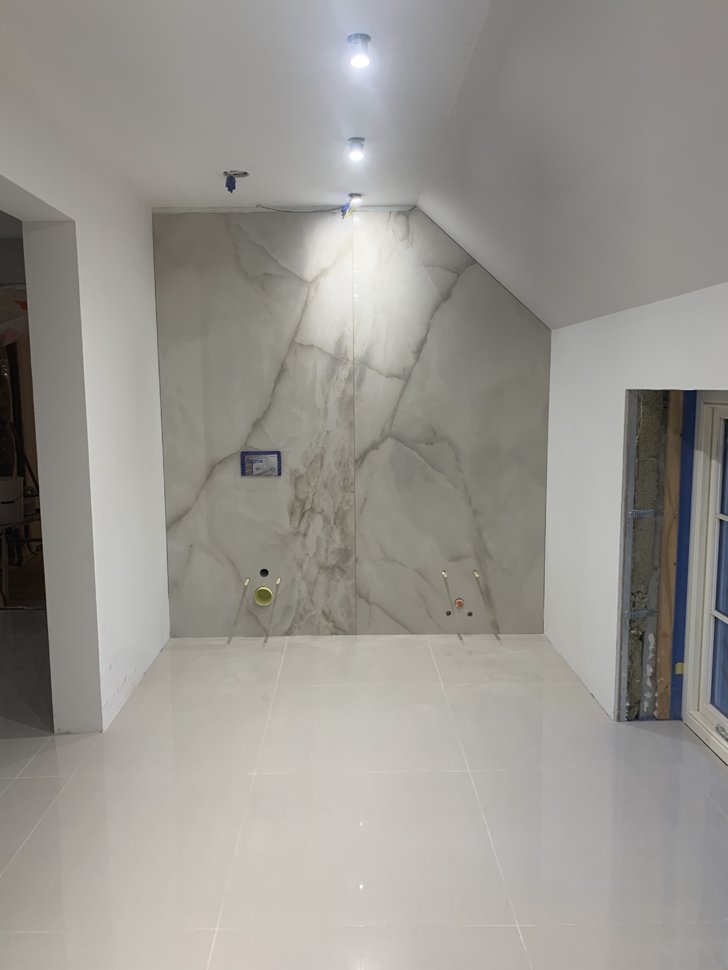

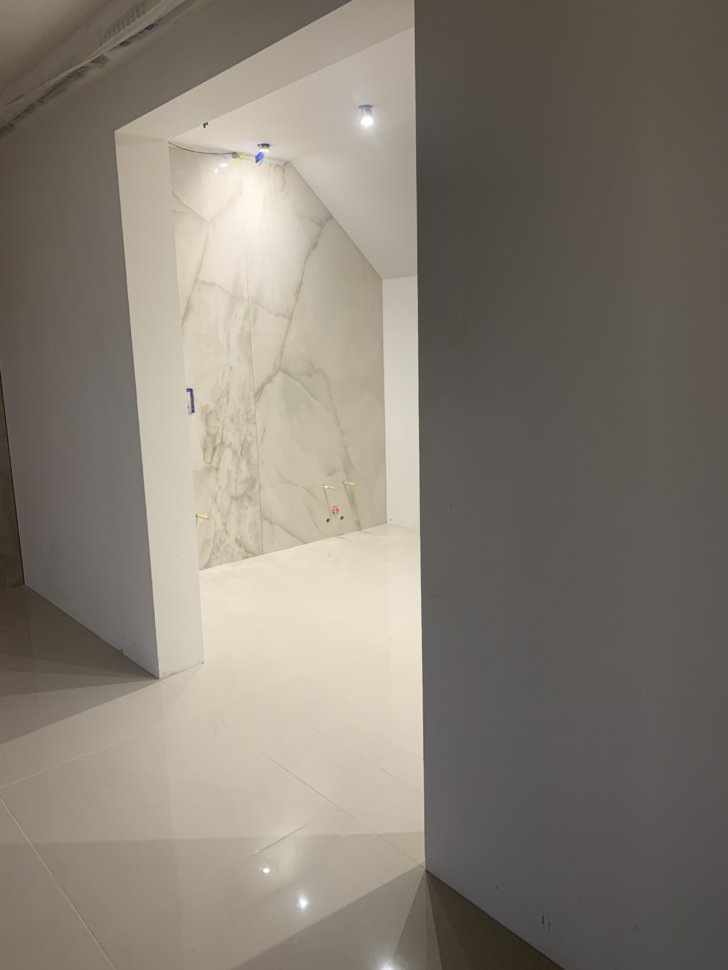

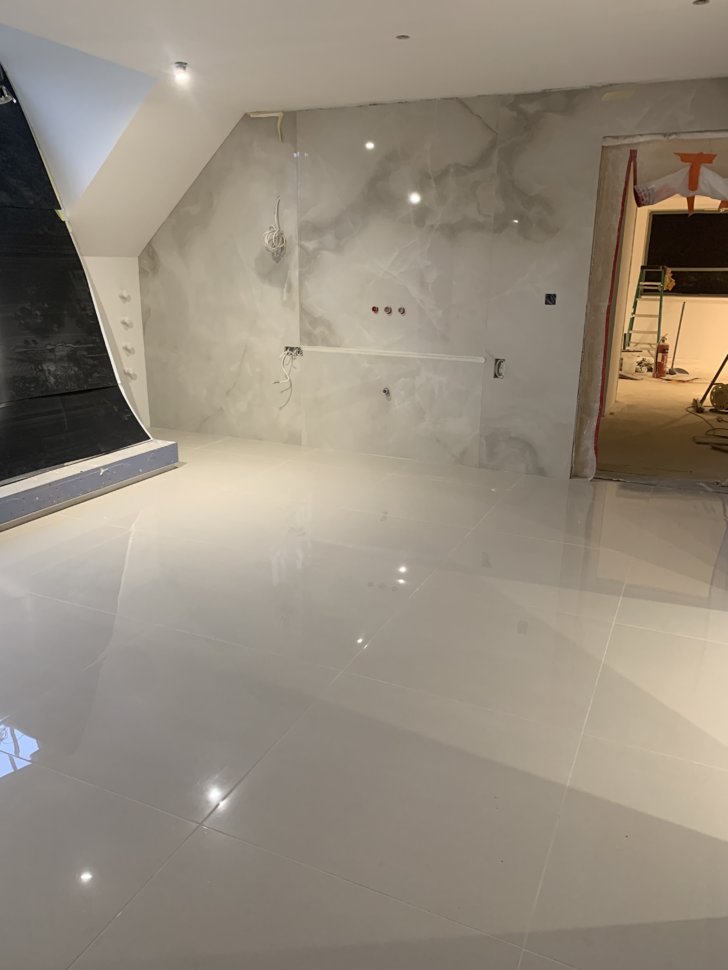

So here’s a bathroom I’ve just completed in Surrey, it’s part of a much bigger project which has been running for a couple of years now, and will be several more months before it’s completed.
This Is the master ensuite and probably the largest bathroom I’ve done to date with a footprint of approx 6.5m x 7.5m
The material is a Florim 3.2m x 1.6m, it was an almost total solo install and was quite a challenge.
Obviously I had help taking material up to the room and I did have help for fitting of four of the panels, the rest however I completed on my own.
All adhesives and grout were supplied by Isomat.
AK25 on floors and AK22 on walls.

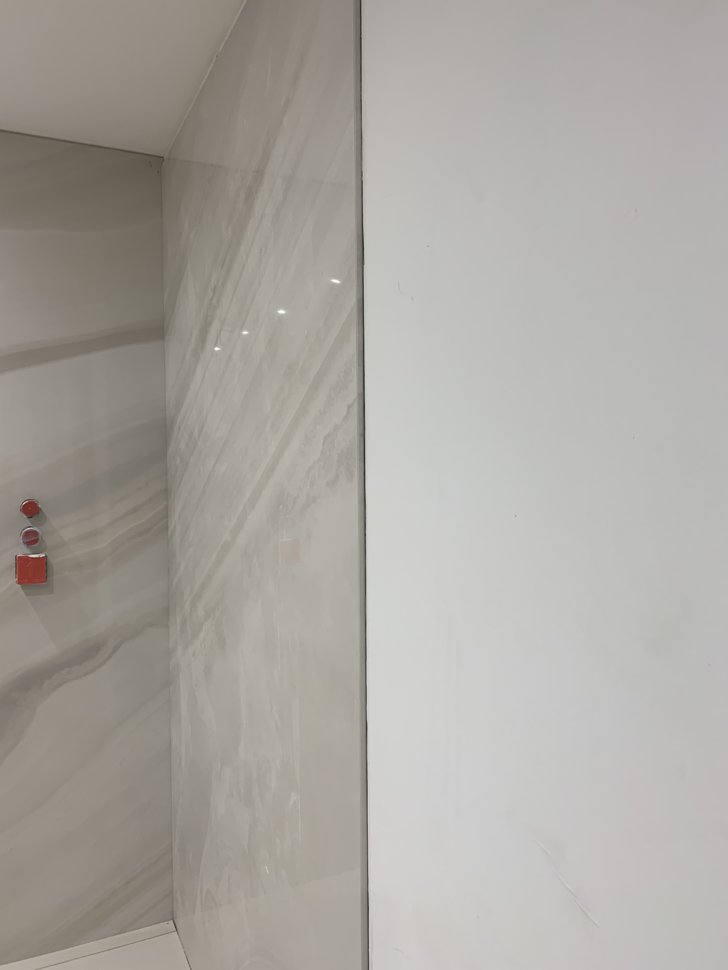

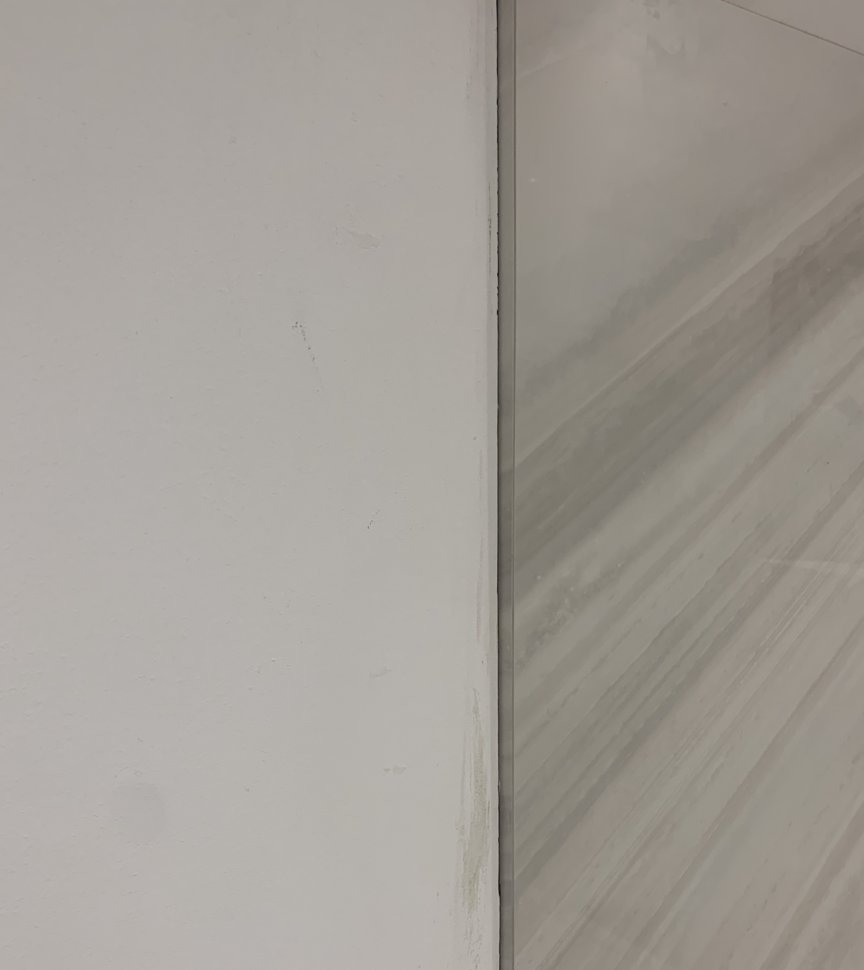

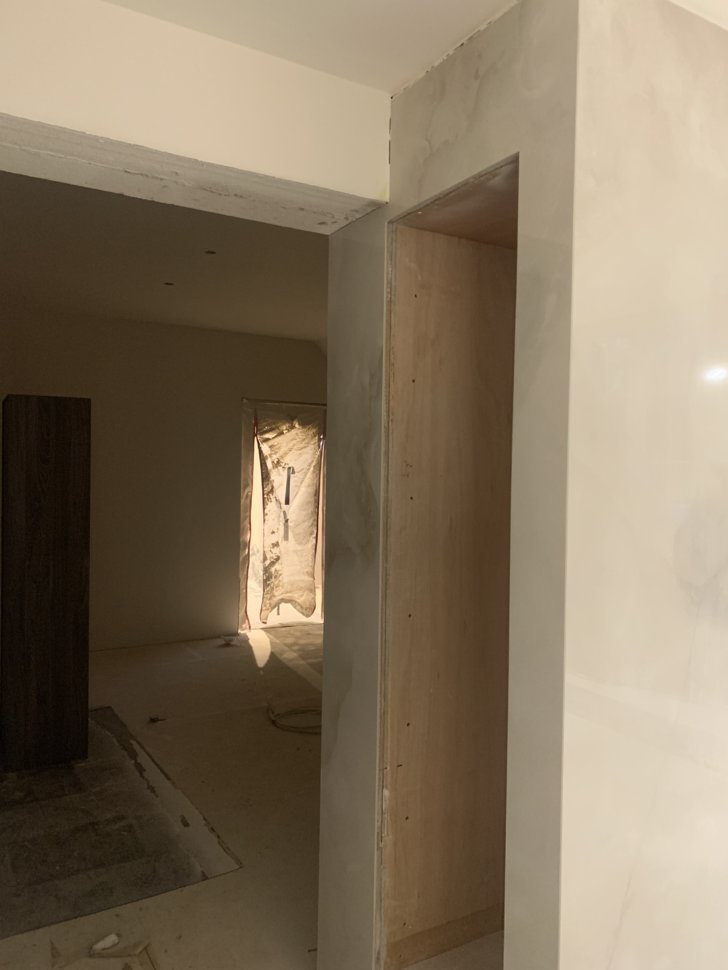

The two ends of the shower side walls are 8mm wide mitred pieces full height to avoid the use of tile trim.

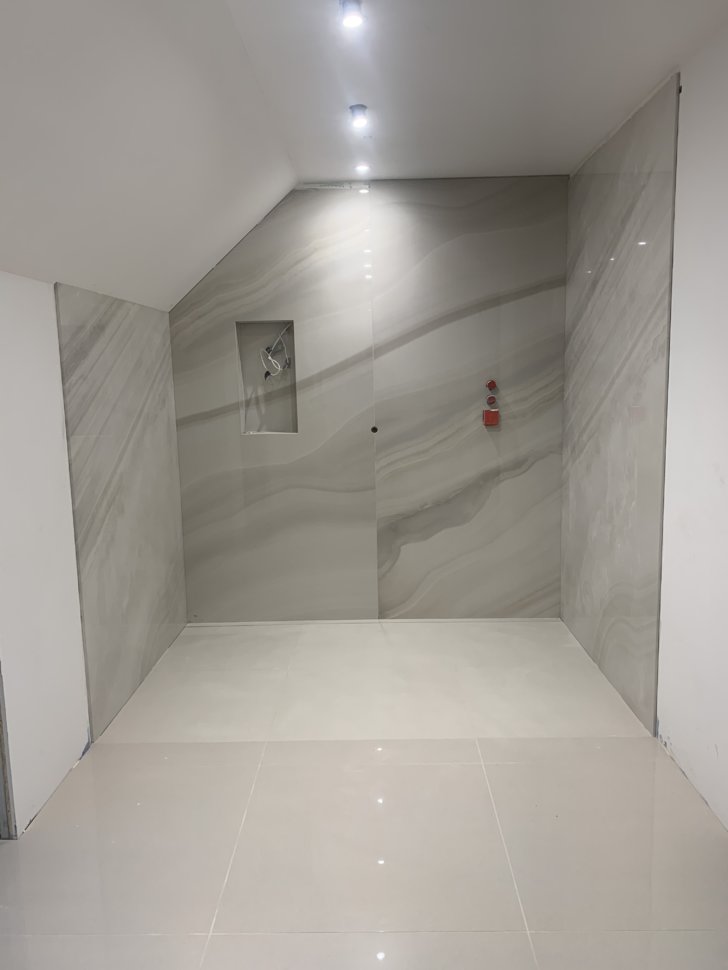

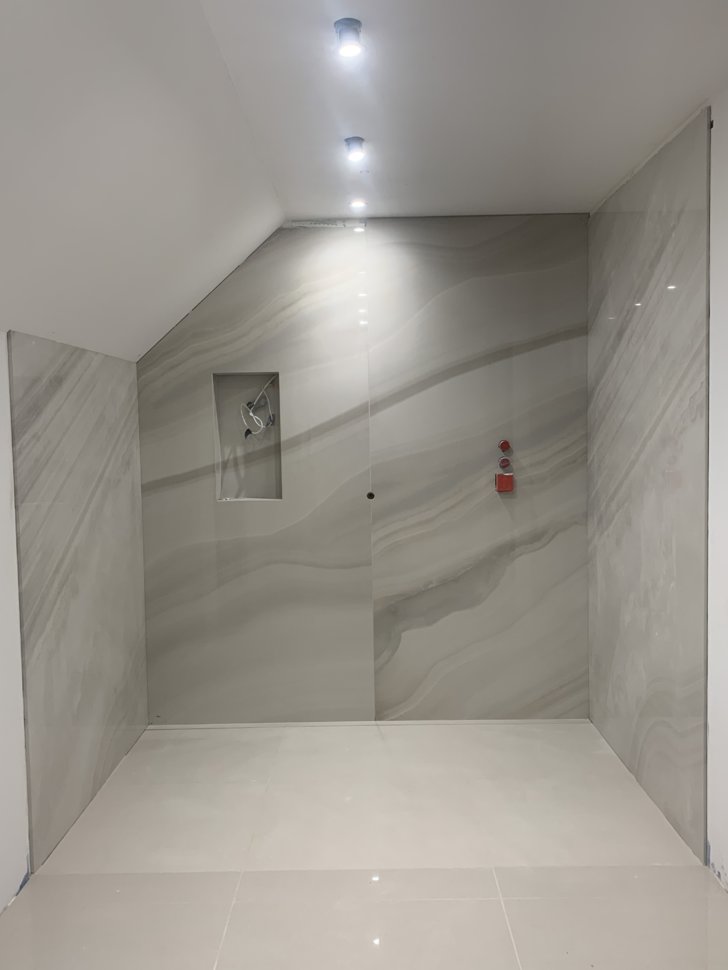

The shower is 2.1 x 1.4m and is enormous, it’s fitted with Kerdi line linear shower gulley.

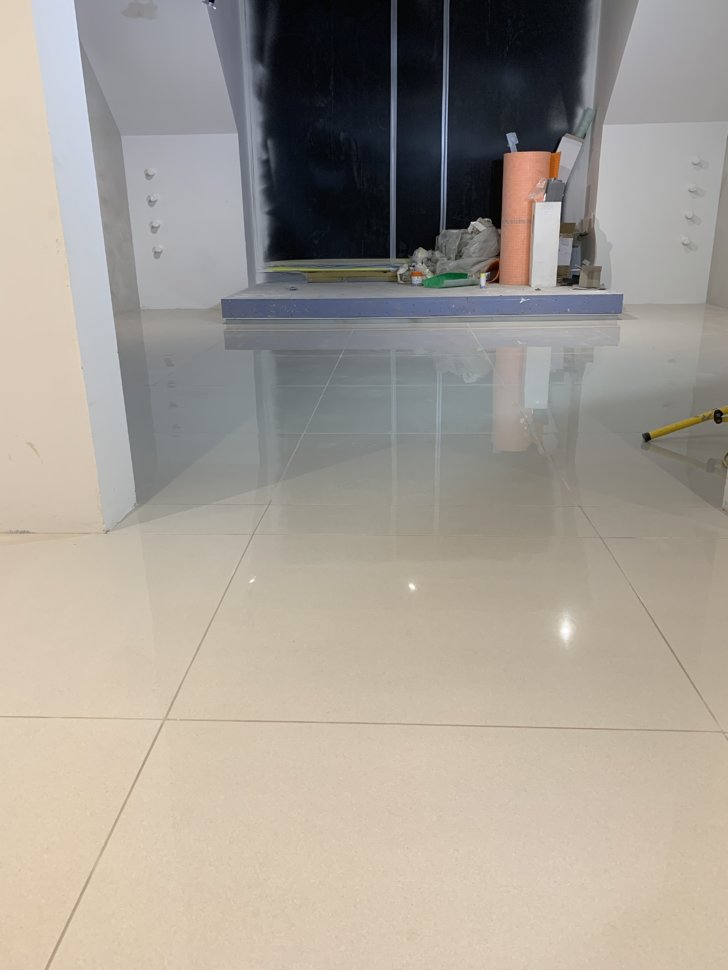

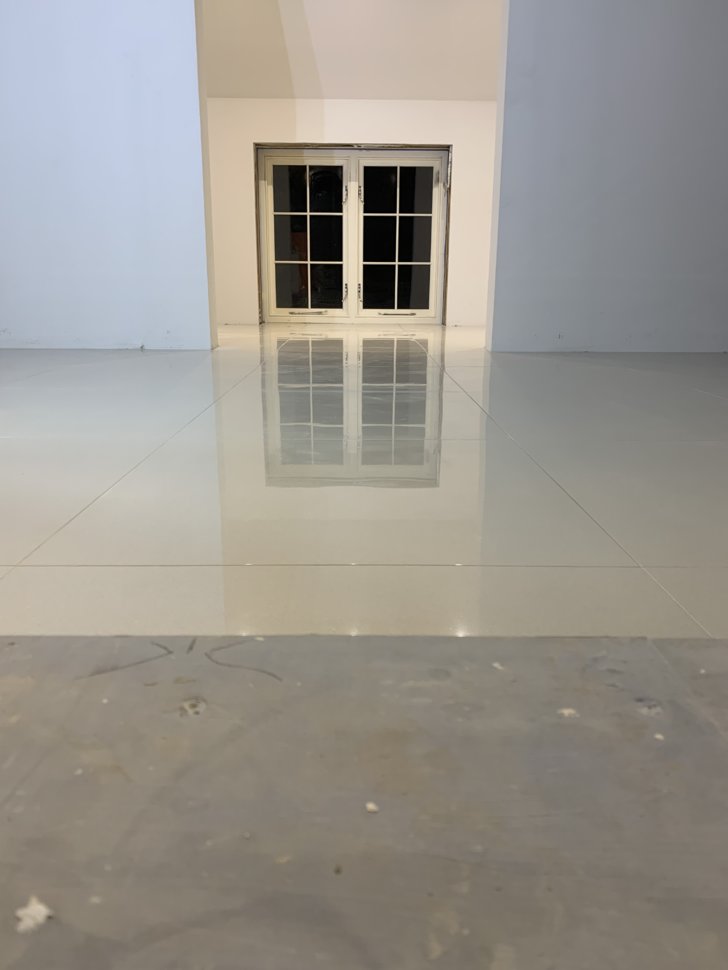

Floor tiles are 800 x 800 and having four different floor levels to work to made it challenging, hence not all floor reflections are exactly perfect.
This Is the master ensuite and probably the largest bathroom I’ve done to date with a footprint of approx 6.5m x 7.5m
The material is a Florim 3.2m x 1.6m, it was an almost total solo install and was quite a challenge.
Obviously I had help taking material up to the room and I did have help for fitting of four of the panels, the rest however I completed on my own.
All adhesives and grout were supplied by Isomat.
AK25 on floors and AK22 on walls.
The two ends of the shower side walls are 8mm wide mitred pieces full height to avoid the use of tile trim.
The shower is 2.1 x 1.4m and is enormous, it’s fitted with Kerdi line linear shower gulley.
Floor tiles are 800 x 800 and having four different floor levels to work to made it challenging, hence not all floor reflections are exactly perfect.
Last edited by a moderator:
D
Dumbo
That is stunning ,
J
J Sid
Not much one can say after seeing that Marc. Bloody amazing workmanship seems a bit of an under statement 👍
O
Old Mod
Thank you Jerry that’s very kind. 😊
Could have ‘liked’ the post tho 🤣🤣
Thank you seems a bit of an understatement after that remark Julian, but thank you. 😂😊🙏🏻
I’m giving it a go Albert mate, cheers. 😊
O
Old Mod
Why thank you Tony, appreciate that.
And congratulations on your jotm victory! 👍
Sorry not been about very much this last week or so, been a little preoccupied.🥵
Amazing work mate that’s quality
O
Old Mod
Cheers Josh mate, appreciated, truly. 😊
Question tho if I may, what size is that new cutter? 😁
Would love to do large format like that and my new cutter cuts upto 1250mm got a great price on it
O
Old Mod
Oh must have read it wrong, thought you said it was 2.25m
I quite often work within an hour of you, you’d be welcome to come along to see if you wish.
I’m actually in Orpington for next couple of weeks. 😊
ATZ Tiling
TF
No lol I’m only small so makes the cutter look bigger
and that would be great only 30ish mins away from Orpington[automerge]1575228003[/automerge]

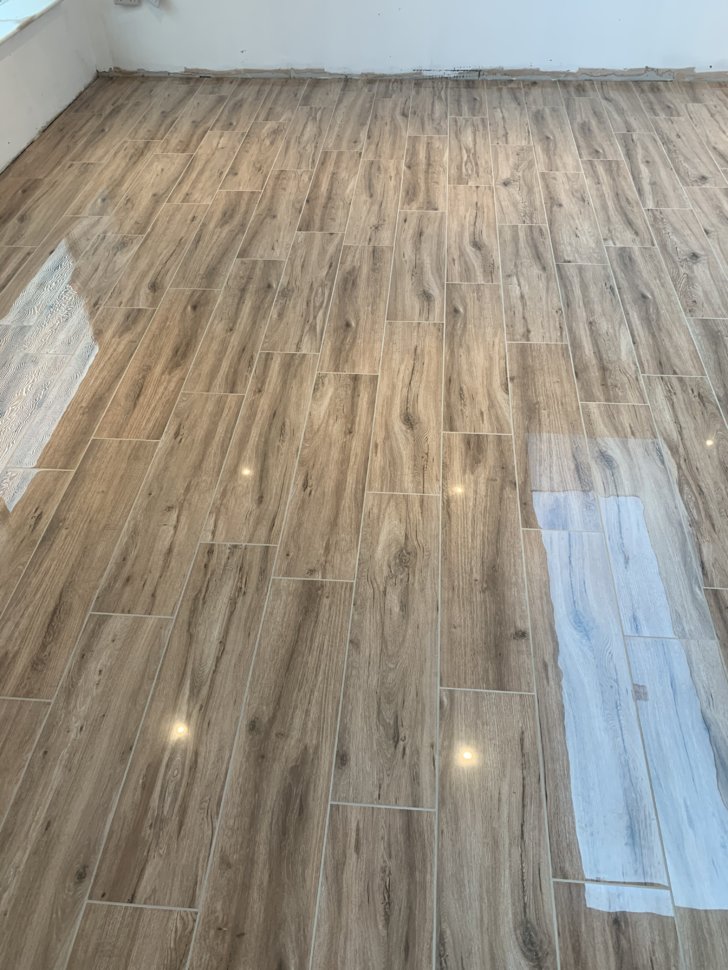

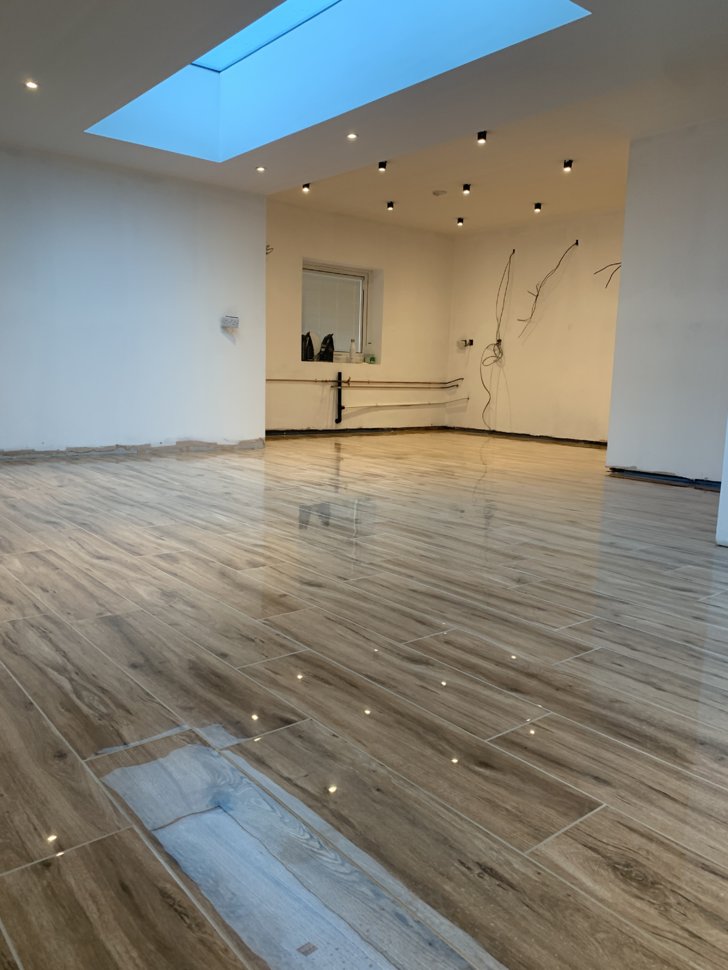

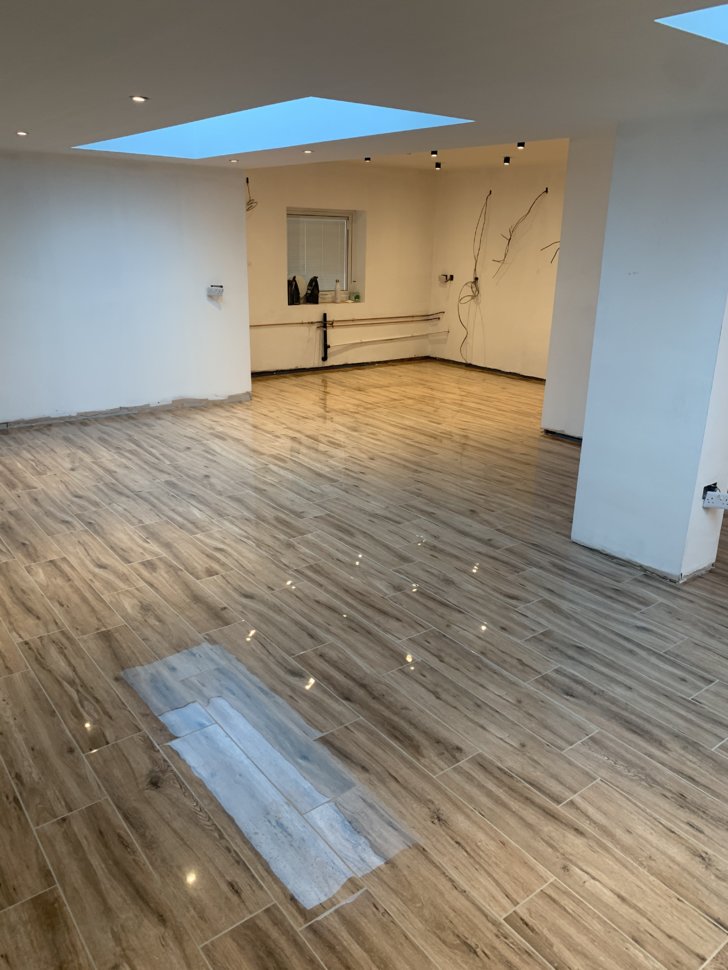

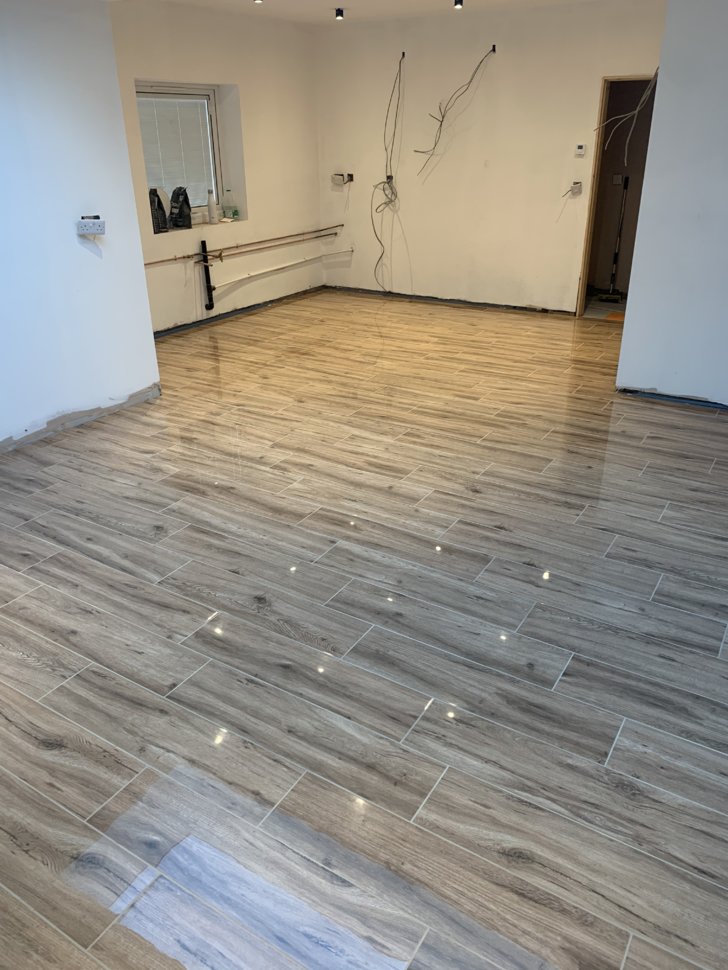

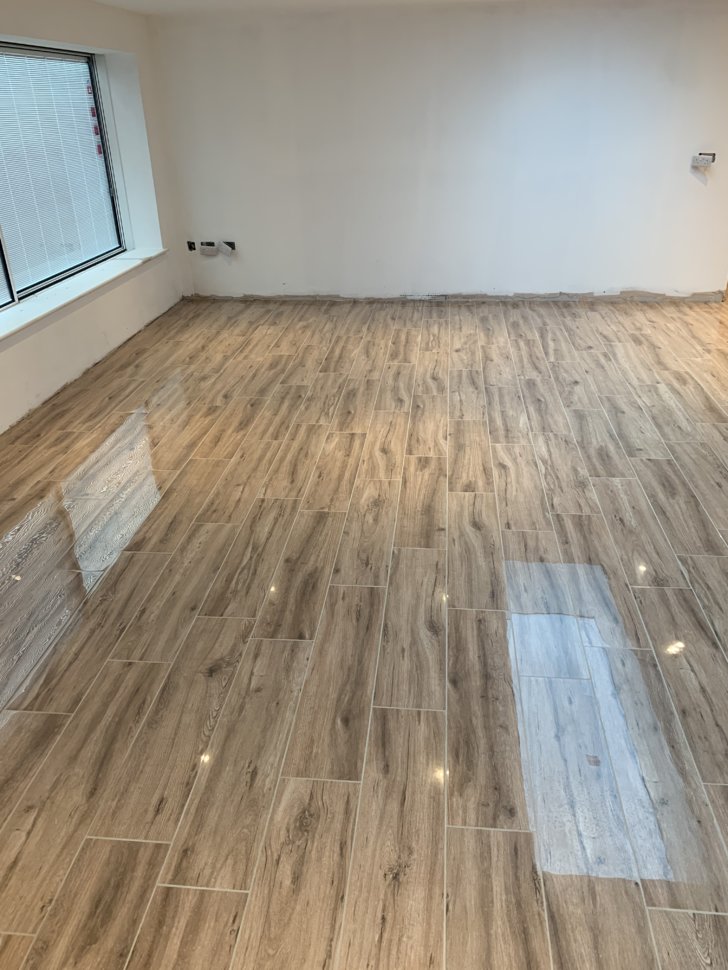

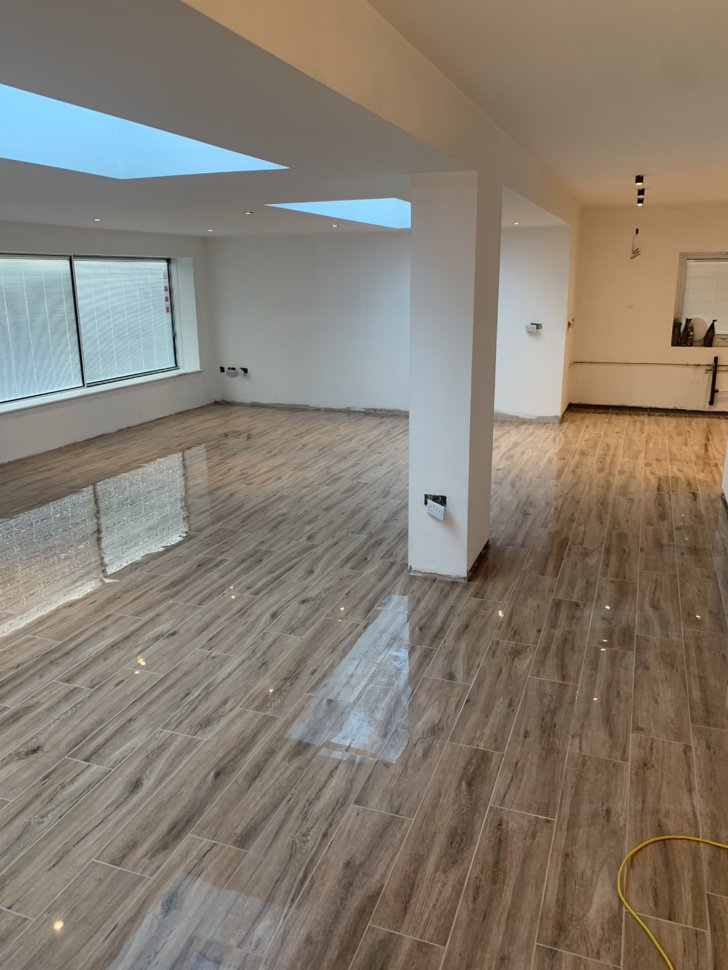

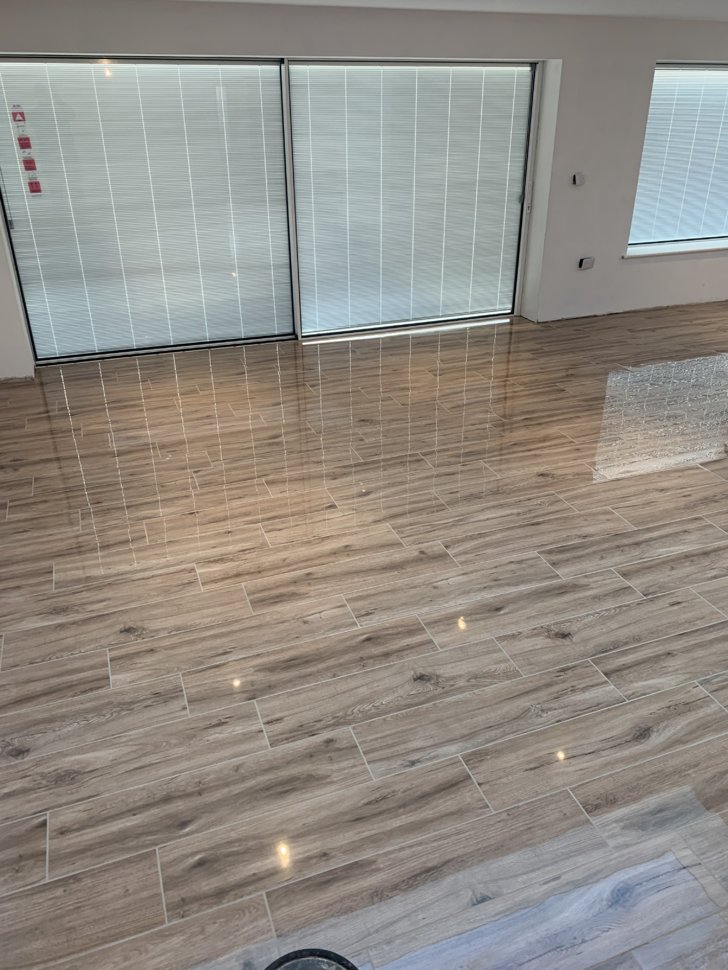

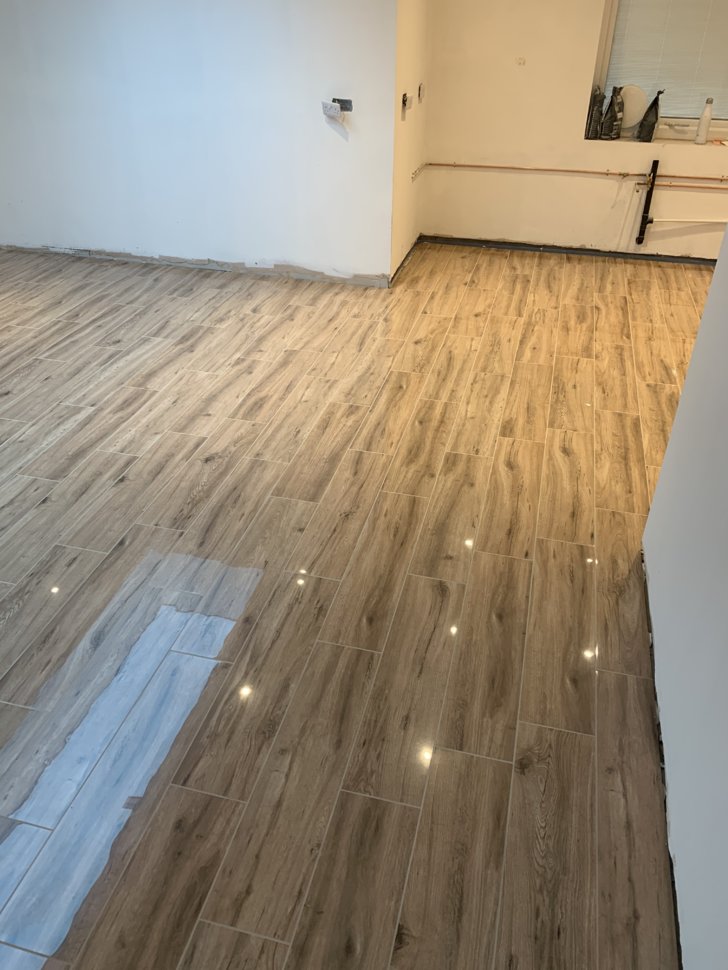

50m2 floor I’ve recently done in 280x1510 plank tiles really good quality tile Really pleased with the finish and flatness 🙂
O
Old Mod
Very kind my friend thank you. 😊
ATZ Tiling
TF
I
Italy
D
Dumbo
Said it was st
Nice , I like that
T
Time's Ran Out

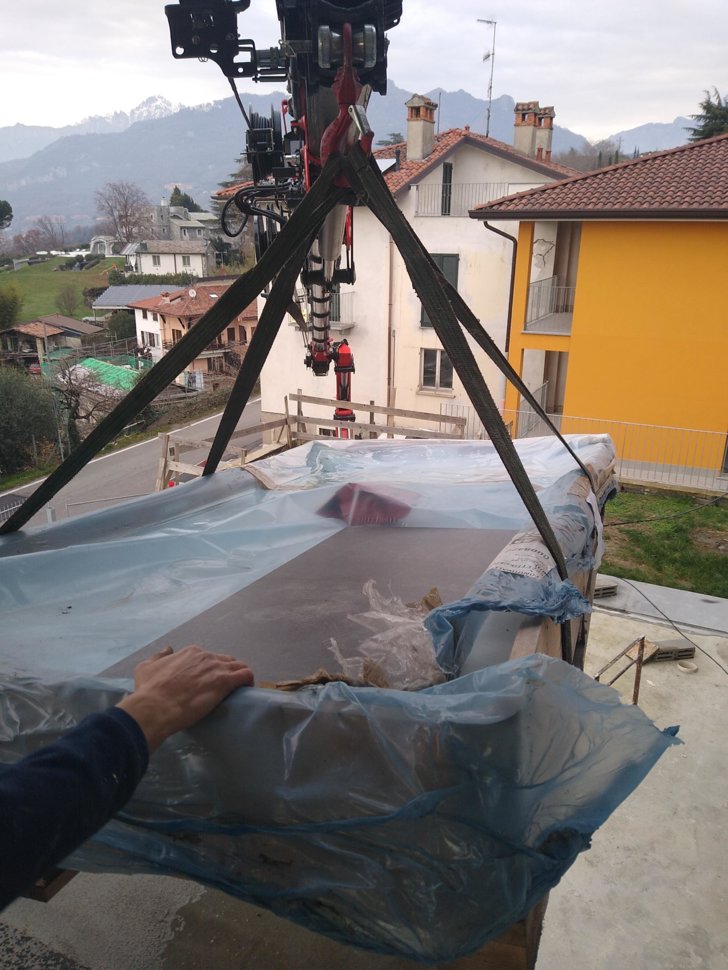

At those heights I assume mechanical fixings?
Nice look.
Nice look.
Lots of prep went into those walls In the end and the highest section Raimondi fixings highest point was 4.6metres
I
Italy
I
Italy
O
Old Mod
Looks pretty kool. 👍
