I have at last made a start on my lounge underfloor heating project and thought I would post a few pics as I go

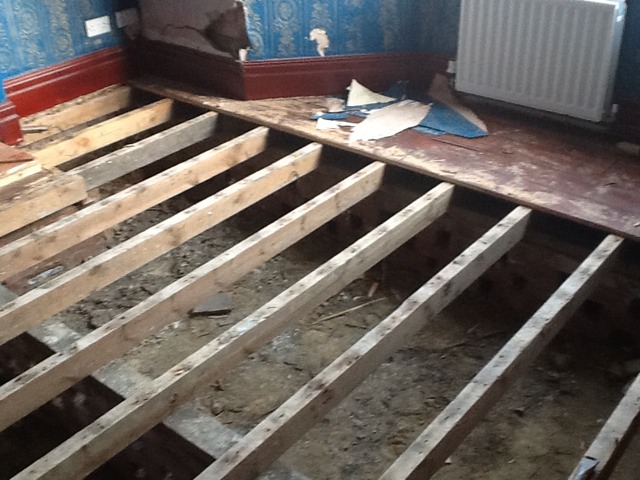

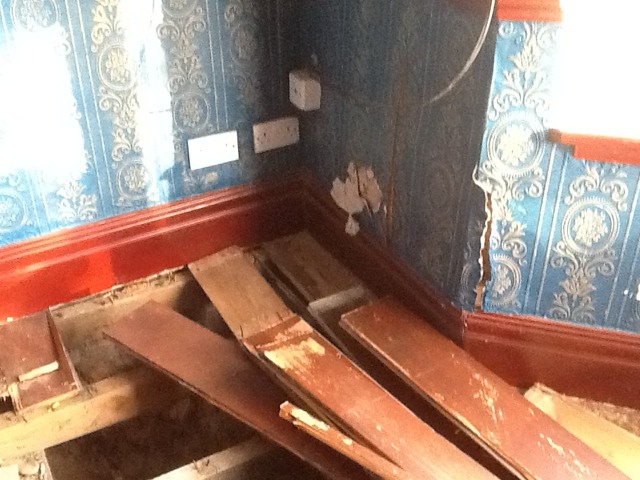

The floor boards removed to expose joists.........



[Discount Tile Supplies]

Holly smokes! No messing about there!



[Ajax123]

Certainly past the point of no return



[DHTiling]

Bloody hell Alan, look at the size of that Rat.. :lol:



[Ajax123]

Bloody hell Alan, look at the size of that Rat.. :lol:

Hehe.... Darwin the beagle dcided he wanted a sniff about in case there were biscuits down there...... Looking forward to phase two at the weekend. Insulation....



[Ajax123]

Phase one complete. Insulation going down next.



[Ajax123]

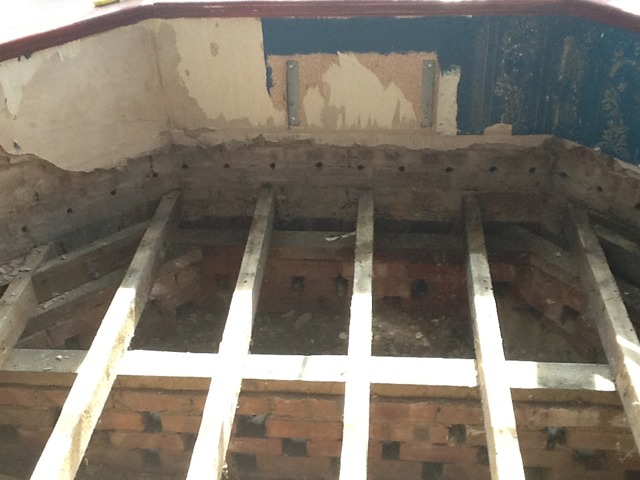

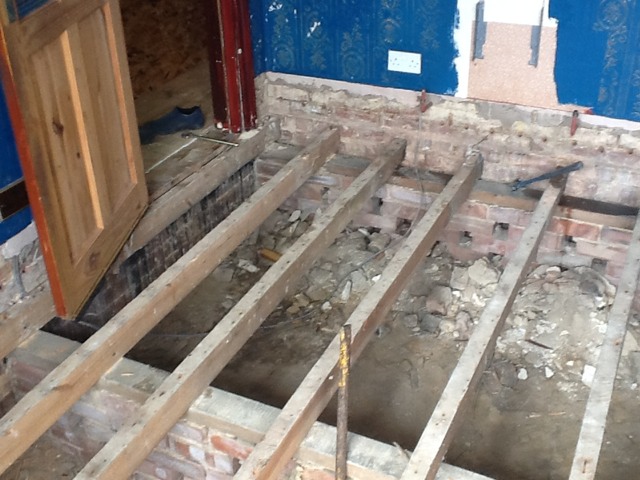

And we're off. Had to clear out the air bricks this opening ..... That's a pleasant job...... Not



[Ajax123]

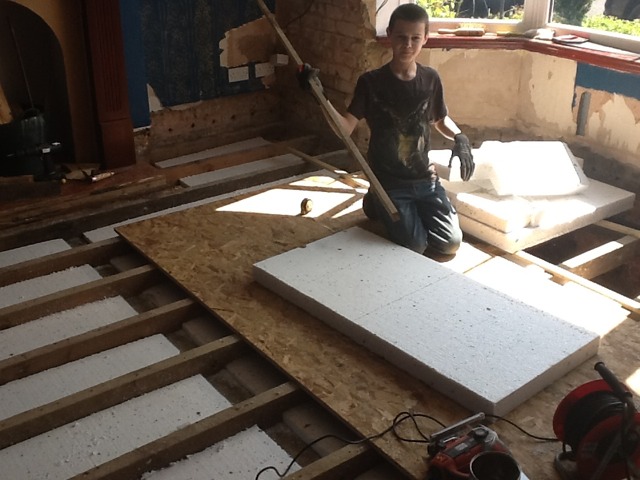

I see nothing wrong with child labour...... My boy was a fantastic help today



[Discount Tile Supplies]

Hope ur not sticking to that wood!



[Ajax123]

Hope ur not sticking to that wood!

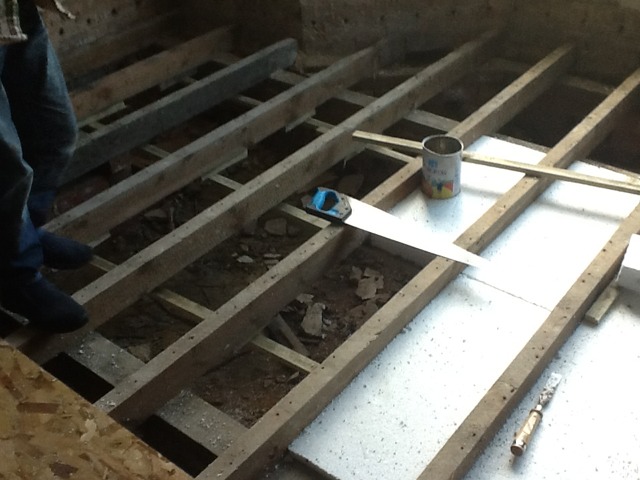

Nope. The sterling board is to go in between the joists as a sub base for the heating pipes and screed



[Ajax123]

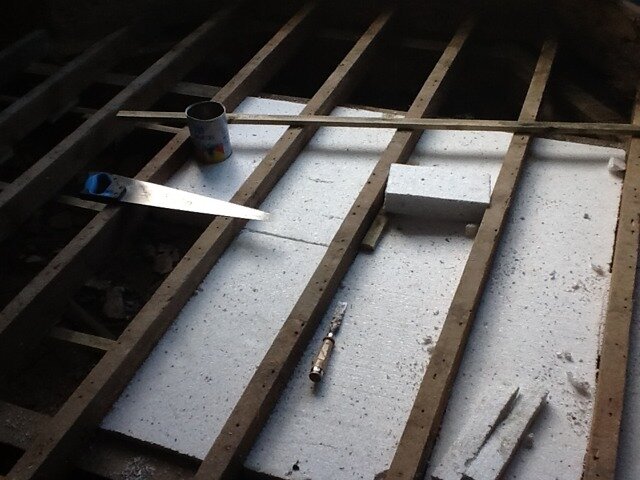

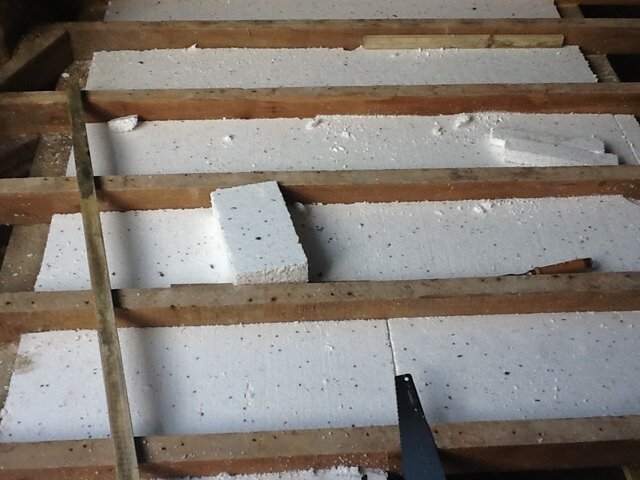

Joists battened reay for steeling board subfloor and final layer of insulation going in. Soon be ready for underfloor heating pipes and 30mm of screed



[Ajax123]

Getting there slowly but surely



[Ajax123]

Phase four complete..... Next job to screw it all down then notch out joists for underfloor heating pipes....



[Ajax123]

Underfloor heating pipes next.......



[White Room]

A bit of making good on the wall Alan......
