135mm dry drill bit?

[Wishiwasatoptiler]

Hi Folks, need a drill bit 135mm or at most 140mm, struggling to find one, normally use ats dimond drills but searched there site and cant find one, its for porcelain,

Cheers



[Dumbo]

Hi Folks, need a drill bit 135mm or at most 140mm, struggling to find one, normally use ats dimond drills but searched there site and cant find one, its for porcelain,

Cheers

Angle grinder



[Dan]

That was pretty quick. 🙂

Need a steady hand?



[Concrete guy]

We do a 125mm, then open up the remaining with nippers or a grinder, or a zero tolerance drum/finger bit.

Over 125mm is very unusual as a regular drill bit. You'll find them as a dry cores but they aren't exactly delicate or clean cutting.



[Wishiwasatoptiler]

The problem is, its to go round a pool light inspection cover, theres no cover, shroud to hide the cut tile, pool company say it it need to say in situ, so the edges need to super neat. I have the 125mm ats bit already, works a treat, but this is 135mm.



[Concrete guy]

Is this external 20mm porcelain?

If it is and this sounds like a one off, get it cut by a waterjet company.



[Time's Ran Out]

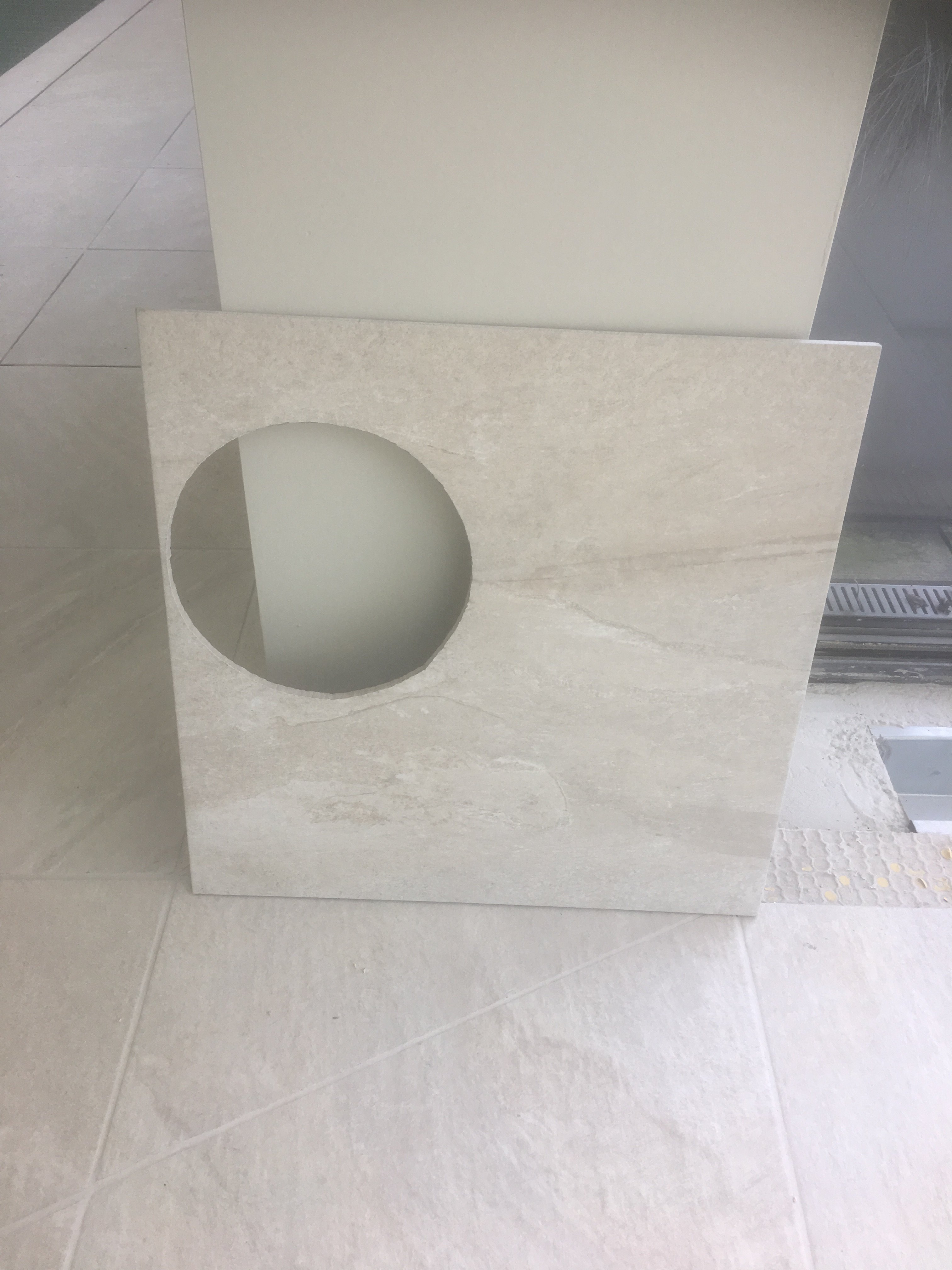

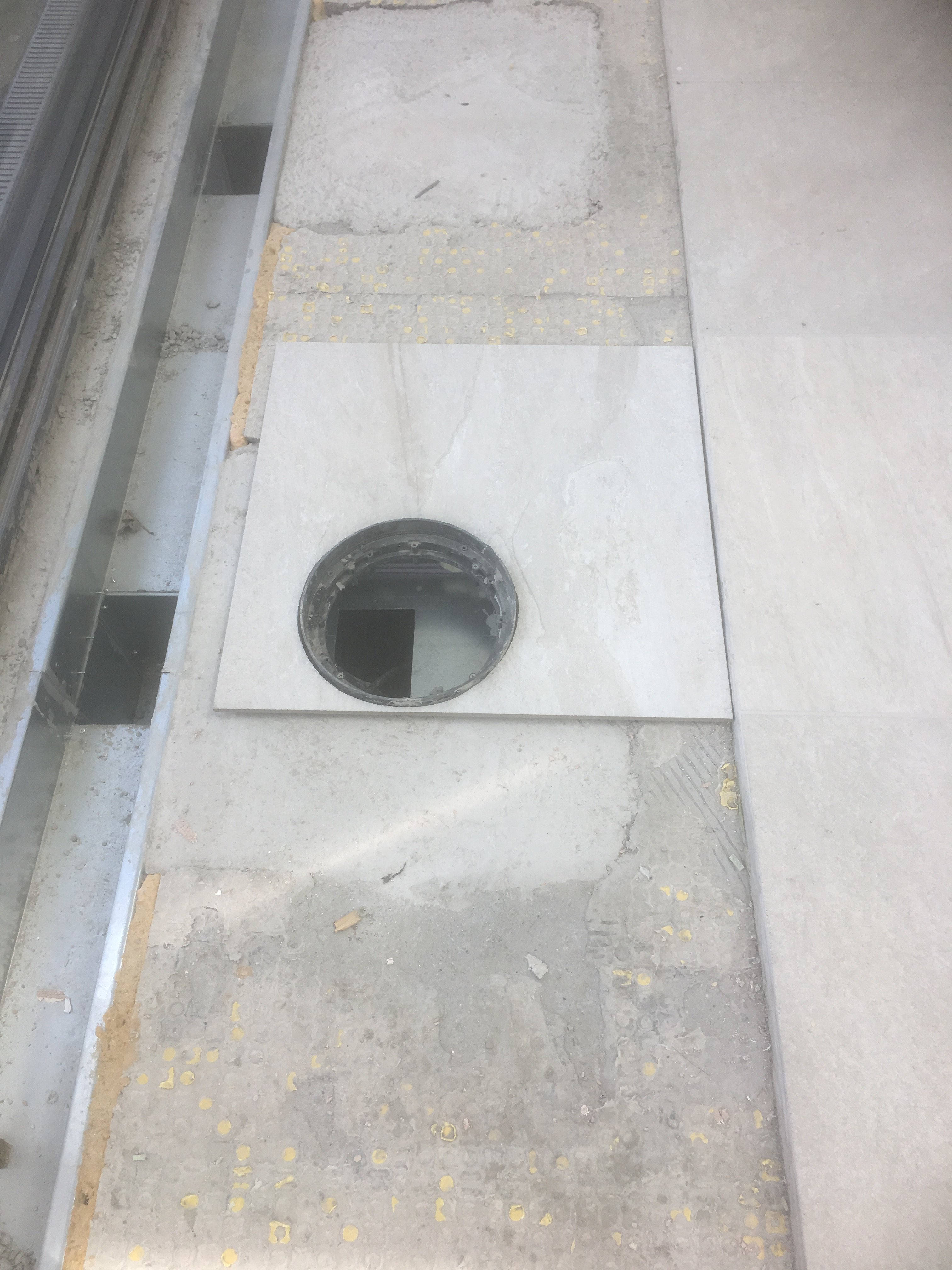

Exactly as you require - hand cut using a grinder and pinchers - pool floor light. 60x60cm porcelain .



[Spare Tool]

Drill it with your 125 and nibble off the rest with nips as above then run a nice neat 8mm bead of Silicon round



[Wishiwasatoptiler]

Thats some cut there john, suprised it never cracked, i have one of those Marcrist curved blade cutter and polishing stone kits, going to give that a go.



[Unused Account 1]

Great cut ,that was his third one lol ,have to Silicon the edge to make it neat once nipped
