Hi there,

I am looking for advice on tile layout for a new build.

We are putting 600mm x 600mm large format in the kitchen and running it out the hallway.
The kitchen is at a 22Deg to the hallway.

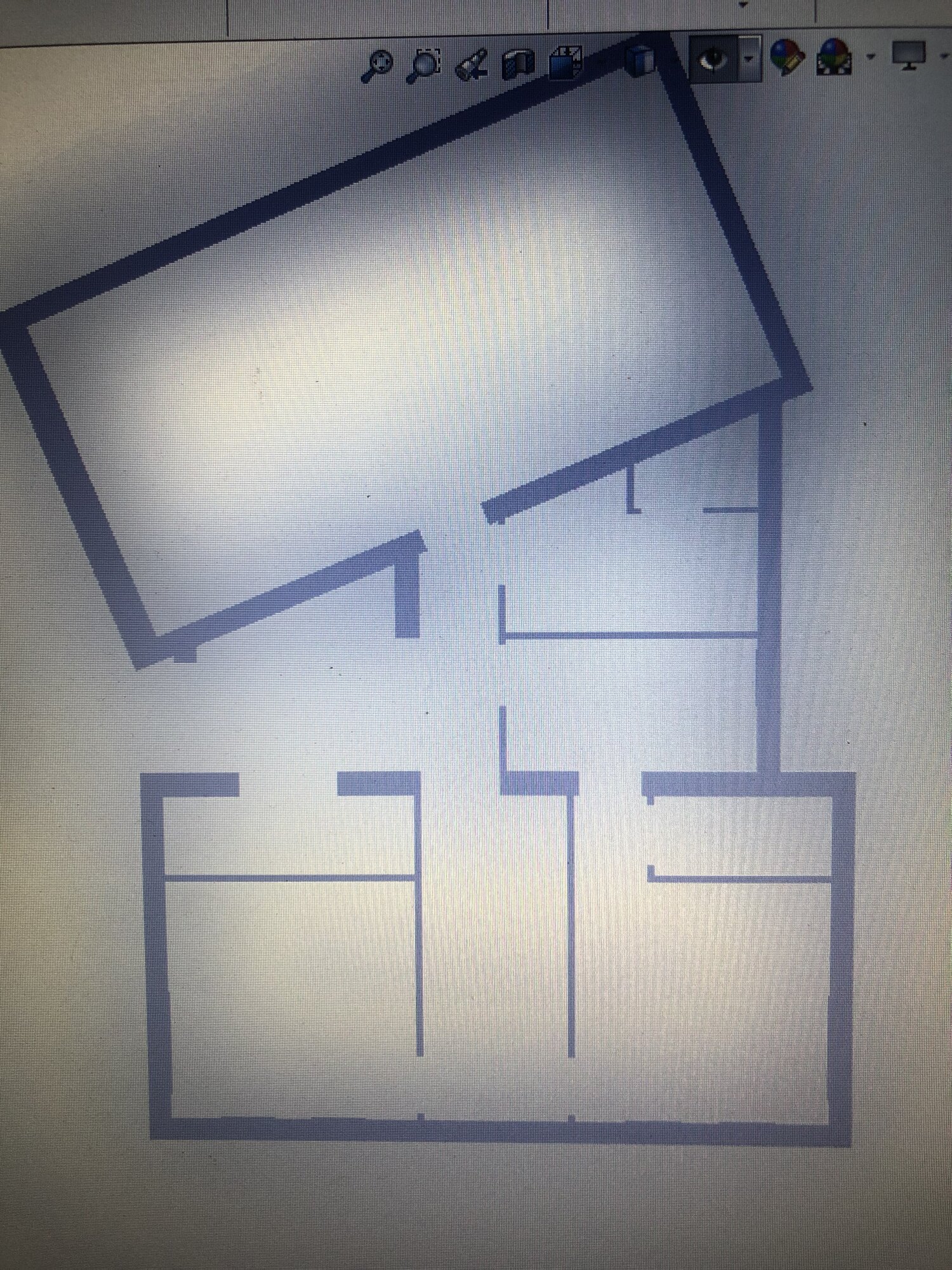

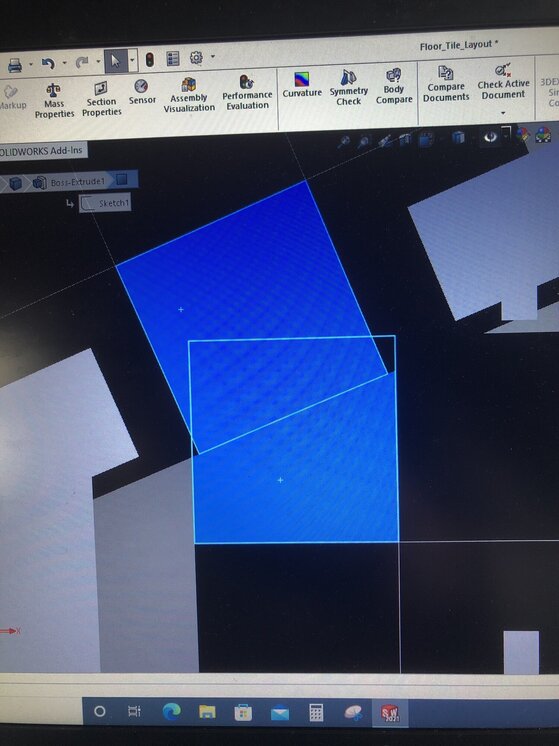

The edges of the tiles will not aligned at this angle and so i am looking for advice how best to have a nice seamless transition from the kitchen to the hall at the doorway. Images attached.

I am trying multiple offsets of the kitchen tile, while wanting to have the hallway tile central.

Grout is 1.5mm

Much appreciated for any advice



[Deleted member 59001]

Hoping somebody would have any suggestions or best practice ?

Many thanks,
Tom



[Dave]

Have you tried moving the bottom tile further back. Also you could insert a header to differentiate the two rooms.



[Richard2021]

Hoping somebody would have any suggestions or best practice ?

Many thanks,
Tom

Both tiles would need to be cut at the same angle ..... 11 deg. , for the grout lines to align



[Deleted member 59001]

Both tiles would need to be cut at the same angle ..... 11 deg. , for the grout lines to align

Thanks for that,

I’ll try that in CAD, see what it looks like



[TSCTILING]

Only way I can see is if you can set hallway so joint line is running middle of door opening, then use that joint line as a setting out point for main room, the joint would meet visually at the door opening but the joint line will be effectively changing to a diagonal bond which will run centered through room. Very hard to call without a scalable drawing



[parkerfresh]

Have you tried a continuous diamond pattern in cad, it’s hard to visualise but maybe worth a try?



[Richard2021]

Thanks for that,

I’ll try that in CAD, see what it looks like

Is there door to the hallway or is it open ? and how wide is the hallway ?



[Deleted member 59001]

Is there door to the hallway or is it open ? and how wide is the hallway ?

Hi there,

There will be a door separating the hallway from the kitchen/living space. Hallway is 1200 wide.



[Deleted member 59001]

Both tiles would need to be cut at the same angle ..... 11 deg. , for the grout lines to align

Hi Richard,

Just checked that and it should work out perfectly by splitting the angle.

Appreciate that 👍
