Ceramic B&W Lifted an original badly damaged Victorian floor, client didn't want to pay to restore also was a bit tight so cut this replica floor from 300x300mm B&W tiles from topps took a day cutting it down but i think it looks the part ?

Ceramic B&W Lifted an original badly damaged Victorian floor, client didn't want to pay to restore also was a bit tight so cut this replica floor from 300x300mm B&W tiles from topps took a day cutting it down but i think it looks the part ?

  • Media owner Tenchman
  • Date added Mar 26, 2010
  • Reaction score 0
  • Comments 0
bwden newsection This section was new in a long corridor lifted the original tiles for use to restore original sections. These were cut from 6x6 the original were 6.5 inches sq. so would have needed a new mould making to produce same size. Conservation officer let us use new as long as they looked good enough to match in as the building was listed.

bwden newsection This section was new in a long corridor lifted the original tiles for use to restore original sections. These were cut from 6x6 the original were 6.5 inches sq. so would have needed a new mould making to produce same size. Conservation officer let us use new as long as they looked good enough to match in as the building was listed.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 2

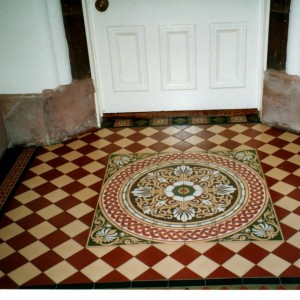

BH porchb4 This porch had original tiles ripped out in late 1960, so we didn't know what the floor looked like but i think the new floor with an encaustic panel works well.

BH porchb4 This porch had original tiles ripped out in late 1960, so we didn't know what the floor looked like but i think the new floor with an encaustic panel works well.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
Bwdenporchafter New porch floor see before for details.

Bwdenporchafter New porch floor see before for details.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
bwdenduring Typical damage screed shot right down to wooden suspended floor we used a flexible screed to build floor up.

bwdenduring Typical damage screed shot right down to wooden suspended floor we used a flexible screed to build floor up.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
Belfast 1 Mosaic floor in Belfast Harbour most of the floor sections had lifted in a typical dome fashion. we used a pressure gun to inject an ardex adhesive under the affected areas we re-fixed approx 40-50 sq mtres a day. beating any other Co for time scales.

Belfast 1 Mosaic floor in Belfast Harbour most of the floor sections had lifted in a typical dome fashion. we used a pressure gun to inject an ardex adhesive under the affected areas we re-fixed approx 40-50 sq mtres a day. beating any other Co for time scales.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 2
Wigan Floor this floor was dropped into the cellar below all the joists had rotted. we used a new beam & block floor and screeded with Tilcon fibre screed. cleaned the thousands of tiles and re-fitted them.

Wigan Floor this floor was dropped into the cellar below all the joists had rotted. we used a new beam & block floor and screeded with Tilcon fibre screed. cleaned the thousands of tiles and re-fitted them.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 2
welsh hotel aft pic this floor was so covered in paint & crap that the colours were hard to even distinguish.

welsh hotel aft pic this floor was so covered in paint & crap that the colours were hard to even distinguish.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 2
robinhood bay aft pic nice B&W most of the work was re-bedding loose tiles and cleaning the floor up.

robinhood bay aft pic nice B&W most of the work was re-bedding loose tiles and cleaning the floor up.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
kateafter Lovely little encaustic & geometric removed tiles from small porch to restore floor an idiot had cut floor to put central heating pipe in.

kateafter Lovely little encaustic & geometric removed tiles from small porch to restore floor an idiot had cut floor to put central heating pipe in.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
kateb4 see after shot for details

kateb4 see after shot for details

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
inner porch & threshold This floor prior to our work was split level inner porch was terrazzo and a good two inches above outer porch with a concrete step. outer porch was brush finished concrete. we used Olde english tiles.

inner porch & threshold This floor prior to our work was split level inner porch was terrazzo and a good two inches above outer porch with a concrete step. outer porch was brush finished concrete. we used Olde english tiles.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
Belfast mosaic pic see other Belfast harbour for details.

Belfast mosaic pic see other Belfast harbour for details.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

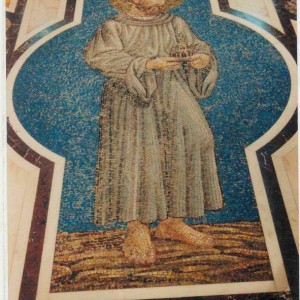

St Thomas Mosaic Figure restored. this is in Douglas IOM the face and body had been damaged and filled with carbody filler. see other pics in mosaic section.

St Thomas Mosaic Figure restored. this is in Douglas IOM the face and body had been damaged and filled with carbody filler. see other pics in mosaic section.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

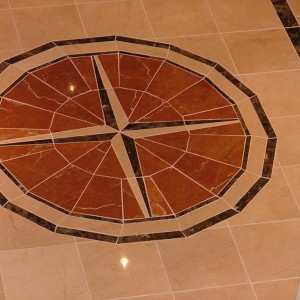

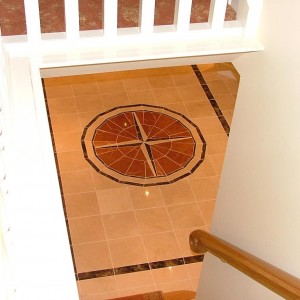

JF porch client said give it WOW factor in his rebuilt stone porch.

JF porch client said give it WOW factor in his rebuilt stone porch.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
Completed floor1 We hand cut all the tiles for this as the client refused the use of water cutting the mean sod !

Completed floor1 We hand cut all the tiles for this as the client refused the use of water cutting the mean sod !

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
Andy Geddes Close up Design see other pics for details

Andy Geddes Close up Design see other pics for details

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

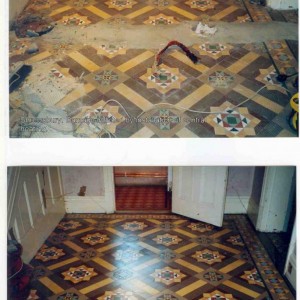

Shrewsbury Floor a typical plumber/gas fitter solution to putting pipes in !!! cut the unique Victorian floor up . that is the minus on the plus it has given me plenty of work .

Shrewsbury Floor a typical plumber/gas fitter solution to putting pipes in !!! cut the unique Victorian floor up . that is the minus on the plus it has given me plenty of work .

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

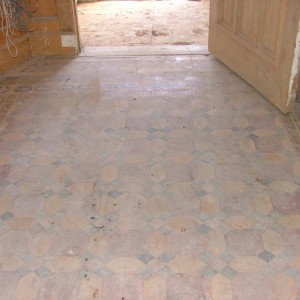

Surrey Hallway usual under a carpet covered in crap it's like people years ago really hated these floors ??

Surrey Hallway usual under a carpet covered in crap it's like people years ago really hated these floors ??

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

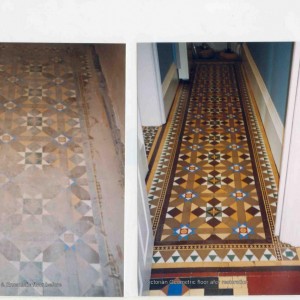

Victorian Geo & Enc floor same again years of neglect .

Victorian Geo & Enc floor same again years of neglect .

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

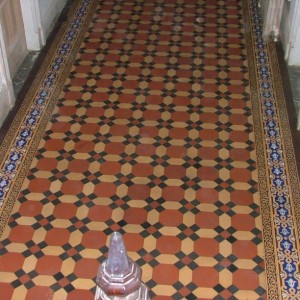

bowden house after Listed building took about a month of repairs etc to get it to this from the before pic.

bowden house after Listed building took about a month of repairs etc to get it to this from the before pic.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0
bowden house B4 see after pic for detail.

bowden house B4 see after pic for detail.

  • Media owner Tenchman
  • Date added Mar 25, 2010
  • Reaction score 0
  • Comments 0

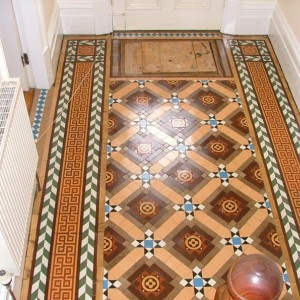

after collingham see before for details.

after collingham see before for details.

  • Media owner Tenchman
  • Date added Oct 29, 2009
  • Reaction score 0
  • Comments 2

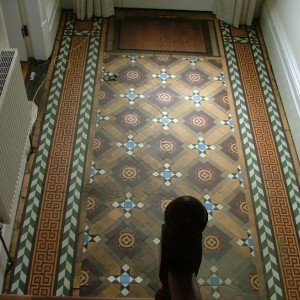

b4collingham this floor was covered in bitumen then had newspapers pressed into the tar it was really bad the client tried to remove above with gallons of white spirit. The floor screed was shot so all the tiles bar the borders were removed and new tiles = all the buff were cut as they had absorbed too much tar to get clean again.

b4collingham this floor was covered in bitumen then had newspapers pressed into the tar it was really bad the client tried to remove above with gallons of white spirit. The floor screed was shot so all the tiles bar the borders were removed and new tiles = all the buff were cut as they had absorbed too much tar to get clean again.

  • Media owner Tenchman
  • Date added Oct 29, 2009
  • Reaction score 0
  • Comments 0
T

Restoration projects & others. - Tilers Forums: The USA & UK Tiling Forum for Tile Fixers and DIY

  • Items 24
  • Album owner Tenchman
  • Date created
Various contracts.
