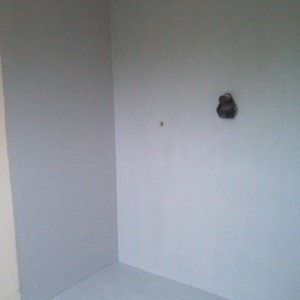

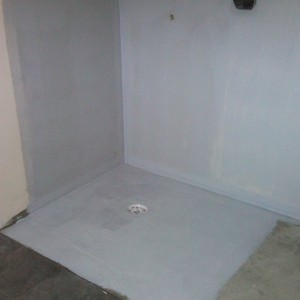

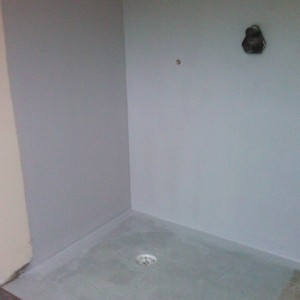

The finished job, ready for tiling.

The finished job, ready for tiling.

  • Reaction score 0
  • Comments 0

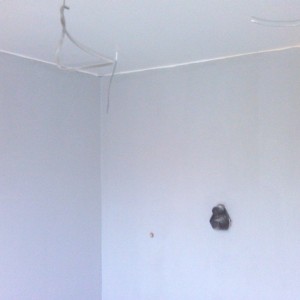

Neatly cut in to the ceiling line - the painter will be happy!! There is a bespoke glass screen getting fitted down the left had side.

Neatly cut in to the ceiling line - the painter will be happy!! There is a bespoke glass screen getting fitted down the left had side.

  • Reaction score 0
  • Comments 0

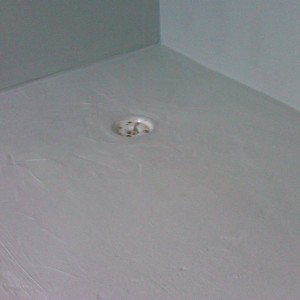

This is the finished job - notice how i have overlapped the edge of the gully to completely seal this in with the tray.

This is the finished job - notice how i have overlapped the edge of the gully to completely seal this in with the tray.

  • Reaction score 0
  • Comments 0

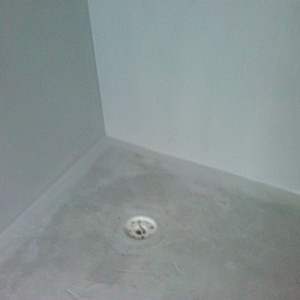

This was tkeen after I has finished the 2 coats to the walls, but before I applied the second coat to the tray.

This was tkeen after I has finished the 2 coats to the walls, but before I applied the second coat to the tray.

  • Reaction score 0
  • Comments 0
This was taken jst after I finished the second coating to the walls, but before I did the second coat on the tray. Notice the difference in colour - I am always happier when I can't see any of the background or substrate beneath the tanking.

This was taken jst after I finished the second coating to the walls, but before I did the second coat on the tray. Notice the difference in colour - I am always happier when I can't see any of the background or substrate beneath the tanking.

  • Reaction score 0
  • Comments 0

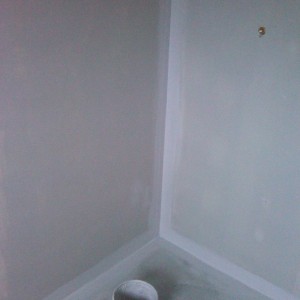

This was taken just after I had finished cutting in before rolling the second coat. Notice the colour difference between the internal corners which have had two coats and the walls/tray which have only had one.

This was taken just after I had finished cutting in before rolling the second coat. Notice the colour difference between the internal corners which have had two coats and the walls/tray which have only had one.

  • Reaction score 0
  • Comments 0
IMG00014 20100709 1313

IMG00014 20100709 1313

  • Reaction score 0
  • Comments 0
IMG00013 20100709 1307

IMG00013 20100709 1307

  • Reaction score 0
  • Comments 0
This is taken after all the Mapeband has been bedded into the first coating and then given a second coating with the Mapegum and paint brush over the Mapeband. Note that I have also cut in along the ceiling level and around the shower valve with the paint brush, just to make sure i don't need to go to near to the painted ceiling and valve with the roller.

This is taken after all the Mapeband has been bedded into the first coating and then given a second coating with the Mapegum and paint brush over the Mapeband. Note that I have also cut in along the ceiling level and around the shower valve with the paint brush, just to make sure i don't need to go to near to the painted ceiling and valve with the roller.

  • Reaction score 0
  • Comments 0
Second coating of Mapegum over the previously bedded in Mapeband.

Second coating of Mapegum over the previously bedded in Mapeband.

  • Reaction score 0
  • Comments 0
Always make sure the Mapei logo is facing out when installing the Mapeband.....

Always make sure the Mapei logo is facing out when installing the Mapeband.....

  • Reaction score 0
  • Comments 0
Mapeband ready for it's second coating of Mapegum.

Mapeband ready for it's second coating of Mapegum.

  • Reaction score 0
  • Comments 0
I paint a coating of Mapegum to either side of all internal corners and bed in the Mapeband, that I have previously cut to length. I always use either the flat side of my serator or a grouting float to make sure this is firmly adhered to the coating, flat and air bubble free.

I paint a coating of Mapegum to either side of all internal corners and bed in the Mapeband, that I have previously cut to length. I always use either the flat side of my serator or a grouting float to make sure this is firmly adhered to the coating, flat and air bubble free.

  • Reaction score 0
  • Comments 0
Not great!!

Not great!!

  • Reaction score 0
  • Comments 0

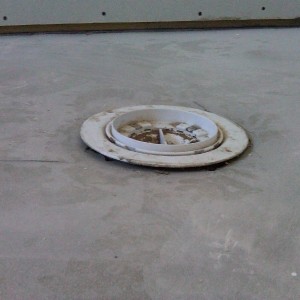

Out of level gully with gap underneath.

Out of level gully with gap underneath.

  • Reaction score 0
  • Comments 0

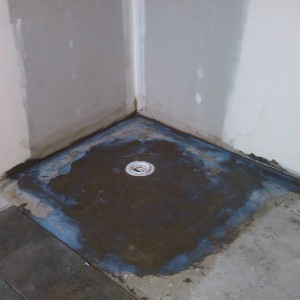

Floor after I'd made some initial remedial making good orks to the tray with Mapei Keraquick. I also filled the gap under the gully and filled the gap at the bottom of the plasterboard.

Floor after I'd made some initial remedial making good orks to the tray with Mapei Keraquick. I also filled the gap under the gully and filled the gap at the bottom of the plasterboard.

  • Reaction score 0
  • Comments 0

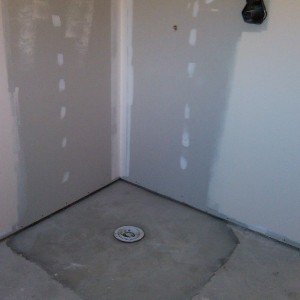

How the builder left it.... Not great - screed thrown in, gully out of level and 25mm gap around the bottom of the plasterboard

How the builder left it.... Not great - screed thrown in, gully out of level and 25mm gap around the bottom of the plasterboard

  • Reaction score 0
  • Comments 0
M

Mapei Waterproof Tanking Kit - Tilers Forums: The USA & UK Tiling Forum for Tile Fixers and DIY
