Master EnSuite - Flexible, reinforced self levelling compound screeded off the top of the strip of HBB using an 1800mm straight edge to provide a flat and level floor for tiling.

Master EnSuite - Flexible, reinforced self levelling compound screeded off the top of the strip of HBB using an 1800mm straight edge to provide a flat and level floor for tiling.

  • Reaction score 0
  • Comments 0
Master EnSuite - 120mm strip of HBB fixed with adhesive and screws (as with other boards) along the lowest side of the floor to make up the additional 8mm needed to level the floor. This will act as a runner for installing the levelling compound.

Master EnSuite - 120mm strip of HBB fixed with adhesive and screws (as with other boards) along the lowest side of the floor to make up the additional 8mm needed to level the floor. This will act as a runner for installing the levelling compound.

  • Reaction score 0
  • Comments 0
Master EnSuite - unfortnately floor is out of level and customer wanted a full wall tile up from the floor, so a bit of jiggery pokery necessary

Master EnSuite - unfortnately floor is out of level and customer wanted a full wall tile up from the floor, so a bit of jiggery pokery necessary

  • Reaction score 0
  • Comments 0
Master EnSuite - all boards now nearly fixed, taped and filled

Master EnSuite - all boards now nearly fixed, taped and filled

  • Reaction score 0
  • Comments 0
Master EnSuite - 1st few boards now taped and filled

Master EnSuite - 1st few boards now taped and filled

  • Reaction score 0
  • Comments 0

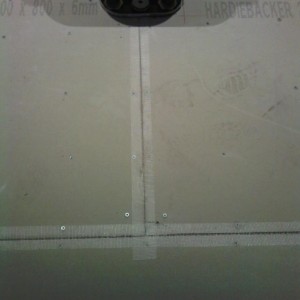

Master EnSuite - The boards are screw fixed through the adhesive bed approximately every 150 - 200mm, then the joints of the 1st two boards taped and ready for filling

Master EnSuite - The boards are screw fixed through the adhesive bed approximately every 150 - 200mm, then the joints of the 1st two boards taped and ready for filling

  • Reaction score 0
  • Comments 0
Master EnSuite - 1st two boards fixed into the adhesive bed

Master EnSuite - 1st two boards fixed into the adhesive bed

  • Reaction score 0
  • Comments 0
Master EnSuite - All boards cut, dry laid and removed - adhesive now serrated for first two boards

Master EnSuite - All boards cut, dry laid and removed - adhesive now serrated for first two boards

  • Reaction score 0
  • Comments 0

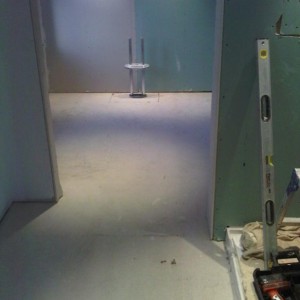

Master EnSuite - 2nd photo before starting

Master EnSuite - 2nd photo before starting

  • Reaction score 0
  • Comments 0

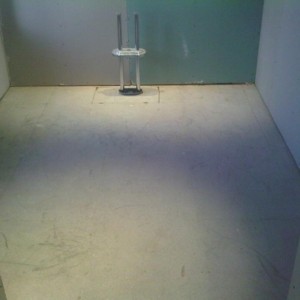

Master EnSuite - 1st photo before starting, the wayrock flooring has wet underfloor heating pipes underneath

Master EnSuite - 1st photo before starting, the wayrock flooring has wet underfloor heating pipes underneath

  • Reaction score 0
  • Comments 0
M

Hardie Backerboard Floor Preparation - Tilers Forums: The USA & UK Tiling Forum for Tile Fixers and DIY

  • Items 10
  • Album owner merlecollins
  • Date created
Preparing the floor with HardiBackerboard and levelling compound. Check out my thread: http://www.tilersforums.co.uk/tile-adhesive-grout-substrate-preparation/30347-prpearing-floor-hardie-backerboard-then-self.html
