Laminam Technical Guide Download for Profiling with Measurements Examples and more

Tilers Forums Official Sponsors

Dan

Admin
Staff member
Type of Tile Used
Laminam
Square meters of tiles:
2000
Area the tiling job(s) / tiling work are/is?
Nationwide

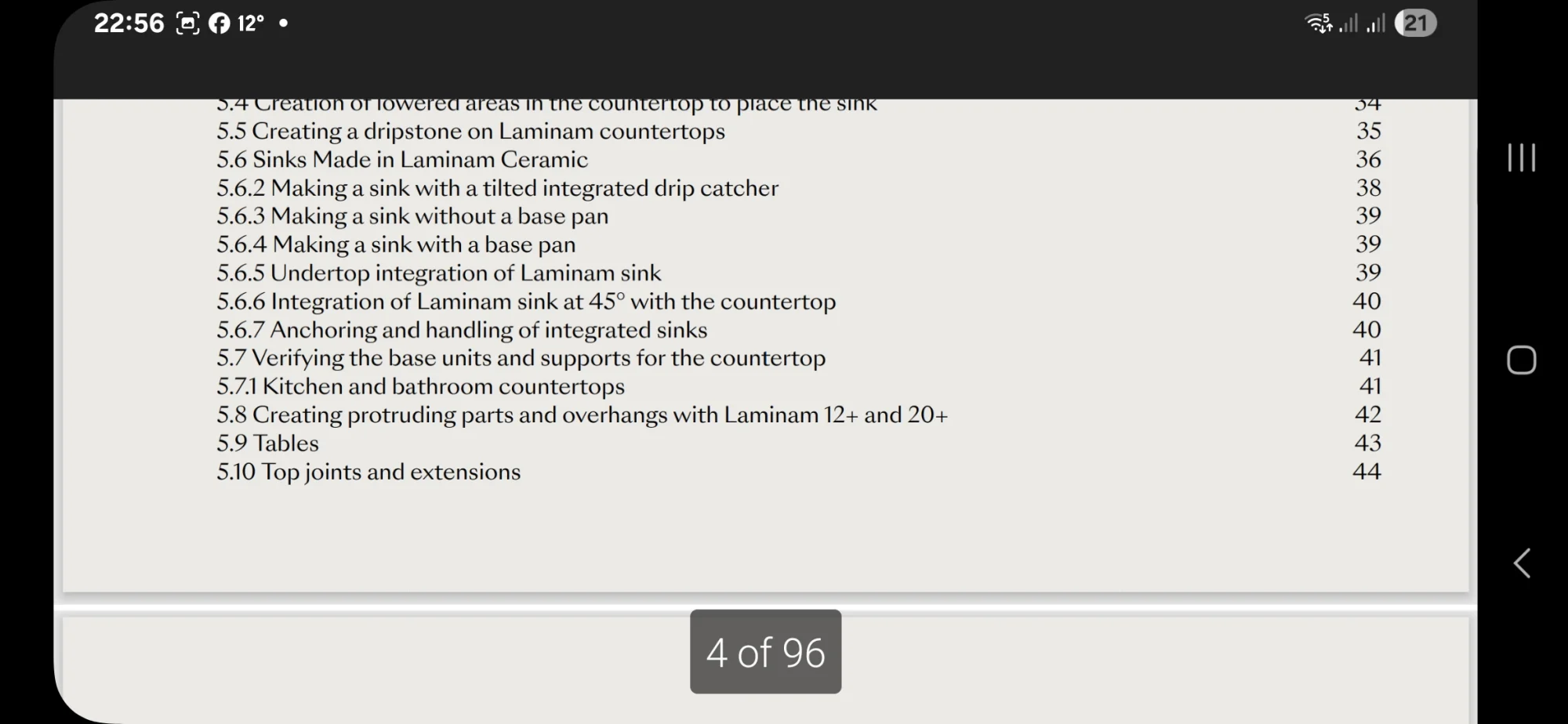

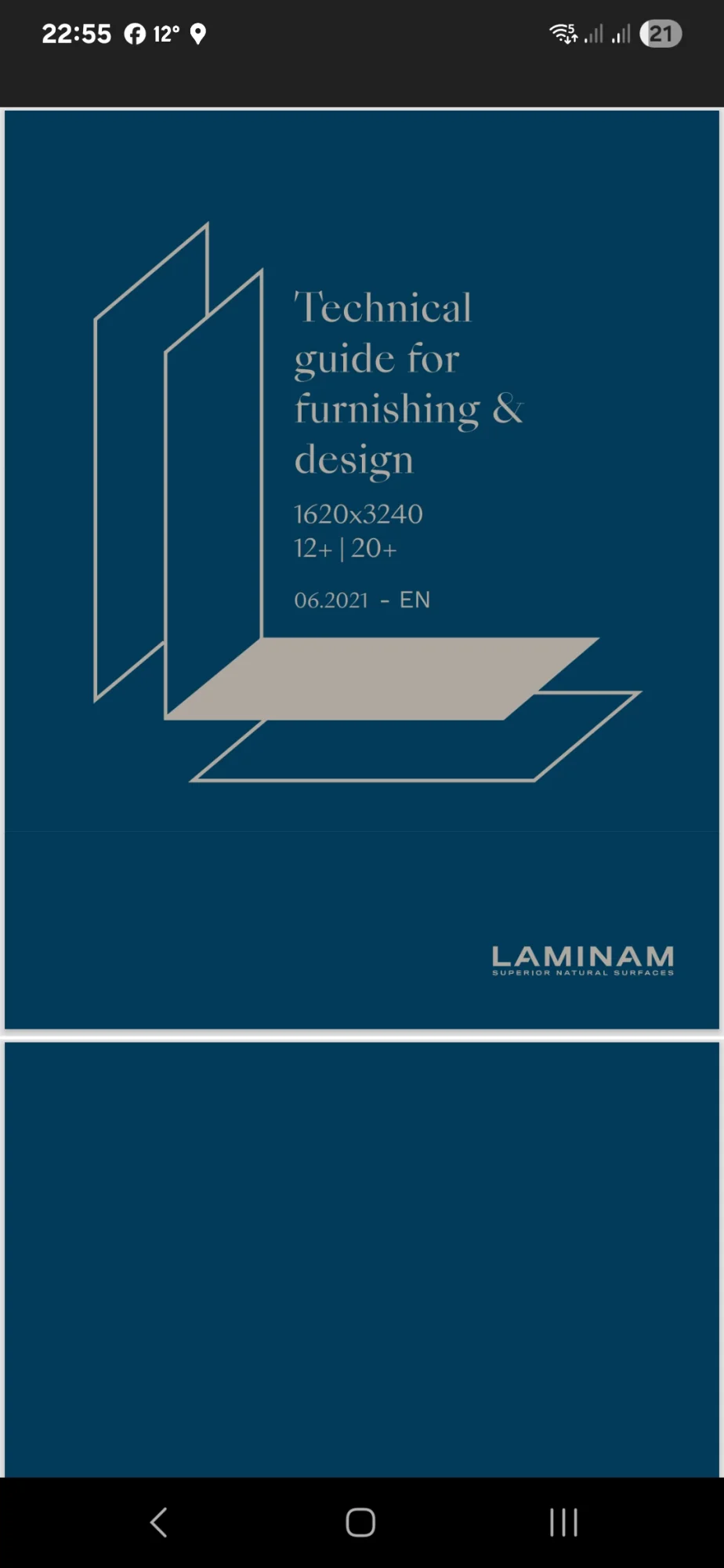

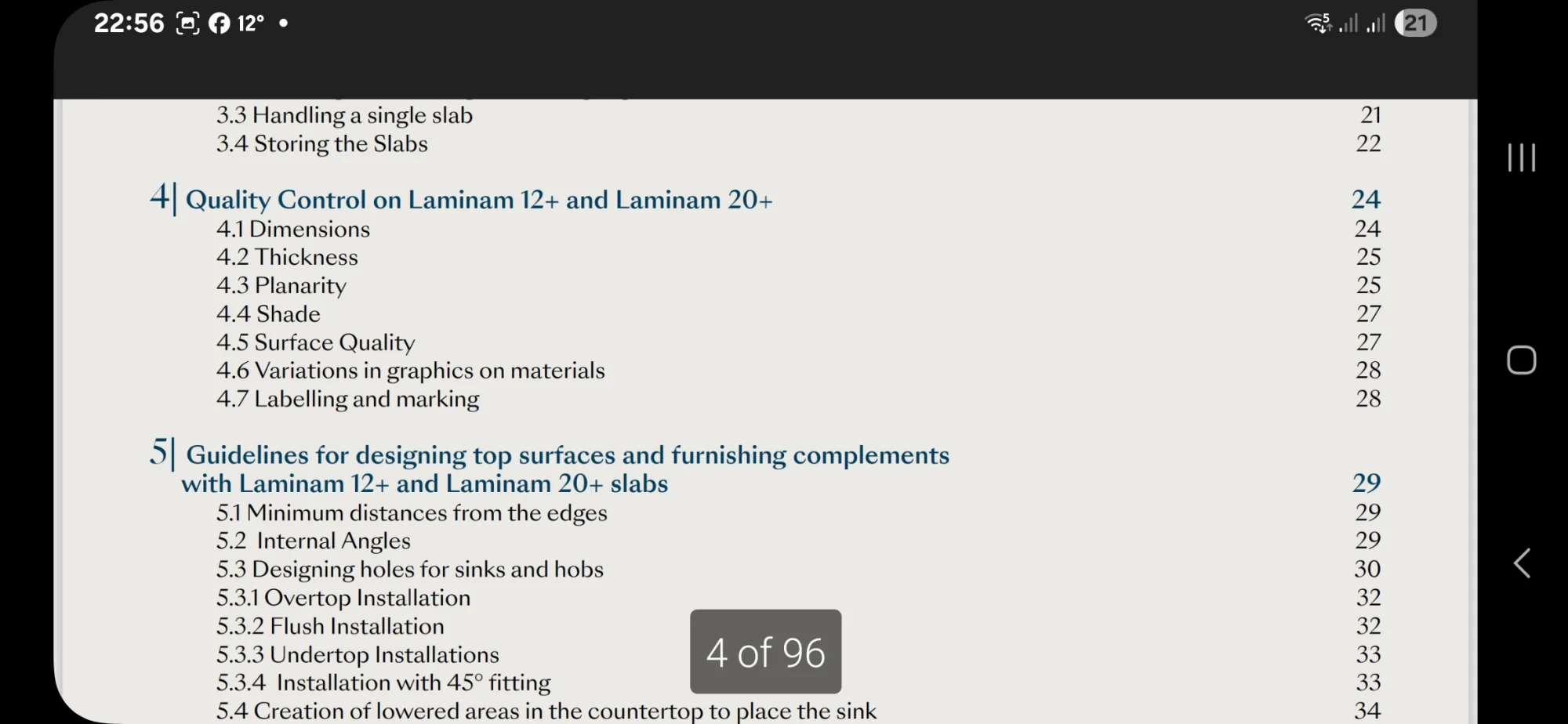

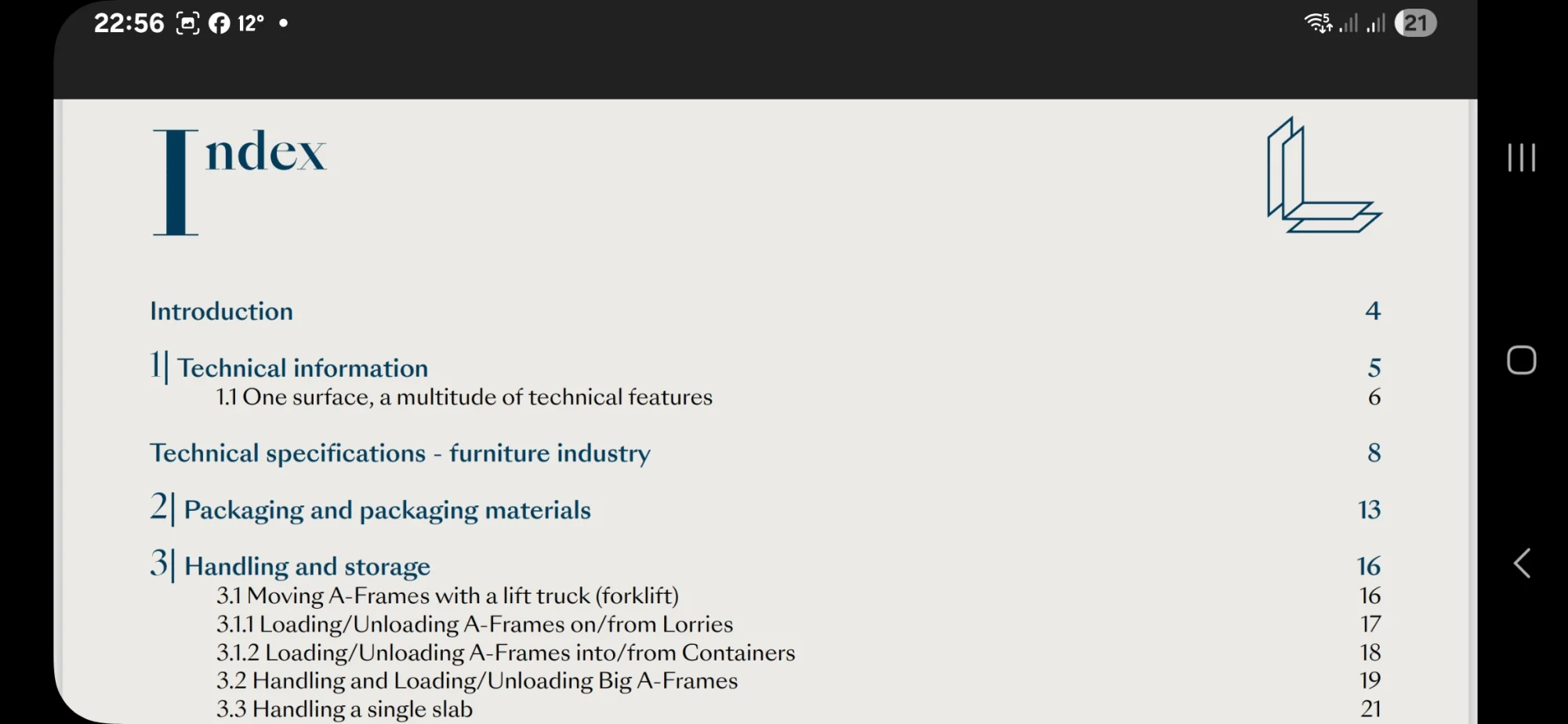

Laminam Technical Guide Download.

Technical information
Distinctive Values of Laminam 12+ e Laminam 20+
Laminam 12+ and Laminam 20 + are slabs in porcelain stoneware in the respective thicknesses of 12,5 mm and
20,5 mm full-body in XL size 1620x3240 mm.
Laminam 12+ consists of the basic slab reinforced structurally with a fiberglass mesh glued to the back with a
specific adhesive. Its nominal thickness is 12,5 mm (0.49")
Laminam 20+ consists of the basic slab reinforced structurally with a fiberglass mesh glued to the back with
a specific adhesive. Its nominal thickness is 20,5 mm (0.80").
Use of Laminam 12+ e Laminam 20+
Bathroom and interior design sector: surfaces for bathrooms and kitchens, tables, furnishing complements.
Construction sector: ventilated facades, raised floors and high traffic walkways, claddings
Shipbuilding sector: finishing material.
Technical specifications for Laminam 12+ e Laminam 20+
Porcelain stoneware obtained by wet-grinding clay, granite and metamorphic rock raw materials together
with a feldspar component and ceramic pigments.
Specially shaped in a compactor and sintered at 1200°C, with






Products Used
Laminam
